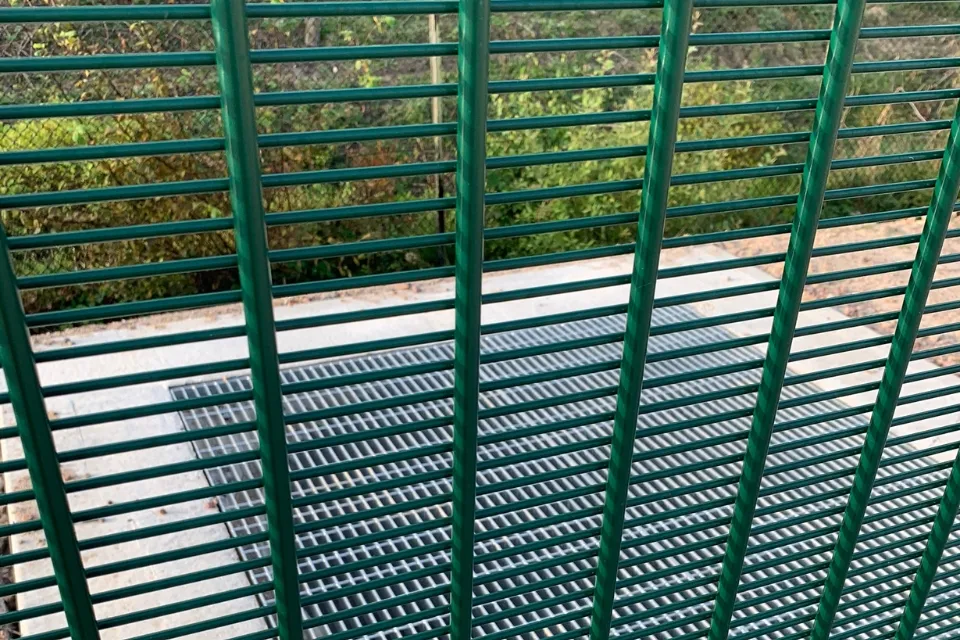

CANFEN ULTRAGUARD B3 (SR2)

01Overview

The worlds first single skin B3 (SR2) and security fence, CANFEN ULTRAGUARD SR2 by Binns Canada is Protection Through Innovation. Manufactured from 10mm vertical wires with 4mm horizontal, it offers a guaranteed minimum delay of at least 3 minutes from forced entry. Each panel features mesh apertures of 76.2mm x 12.7mm to deter climbing.

Installation is at least 30% quicker than similar double-skin B3 Fencing Systems due to the single panel design of the fence. With heights from 2.4 to 4.3m and post centres of 2200mm, the fence is secured with an 80 x 5mm clamp bar.

02Product Details

03Finish

All Binns Canada posts/panels/gates and painted auxiliary components (for example, clamp-bars, slide bolts etc.), benefit from a protective zinc layer and electrostatically applied polyester powder coating to BS 1722-16. Care is taken with pre-treatment to ensure sound adhesion between the zinc and paint layers. In a UK CI environment, as defined in ISO 12944-2, this should ensure a useful life expectancy of the fence of at least 15-20 years. Life expectancy in all environments can be extended by maintaining the fencing with regular washing. Useful life will be reduced if the fencing is damaged. Any coating damage should be repaired to reduce the effect on useful life.

Enhanced painting systems such as marine coatings are also available for improved life expectancy in C2-C5M environments.

04Sloping Ground

Panels can be stepped as required. Where gradients exceed 1:16, it is recommended that taller panels are either part-buried, cut on-site, or additional posts are used.
