PAS68 & IWA14-1 Street Furniture

IWA14-1
PAS68

At a glance

Technical specification
A zero penetration short height cycle hoop.
Crash Rated to 3.5T (N1) @30mph (48kph).
Tested at 15 degree and 90 degree impact.
Shallow foundation	250mm

01Overview

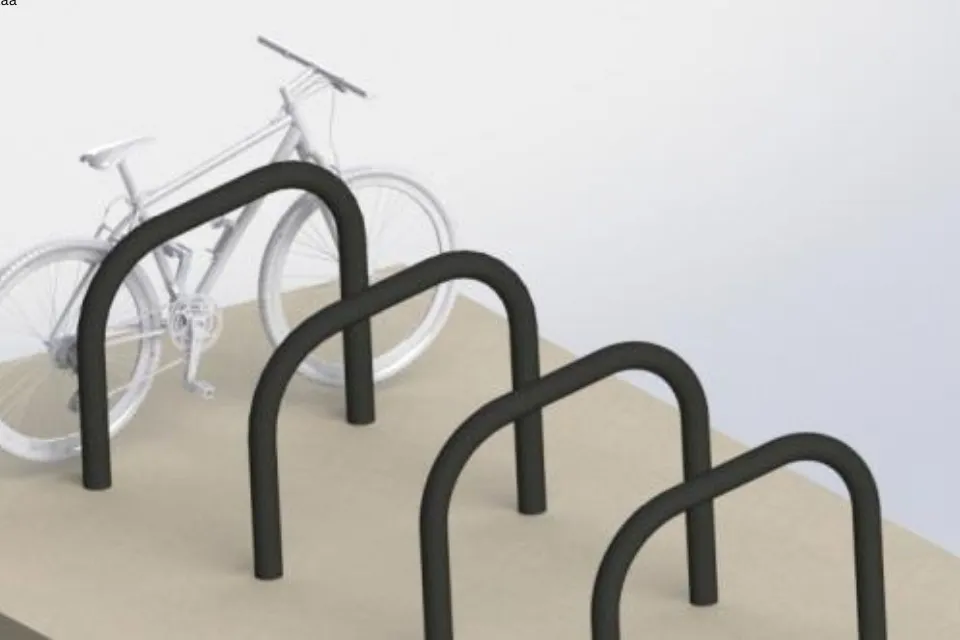

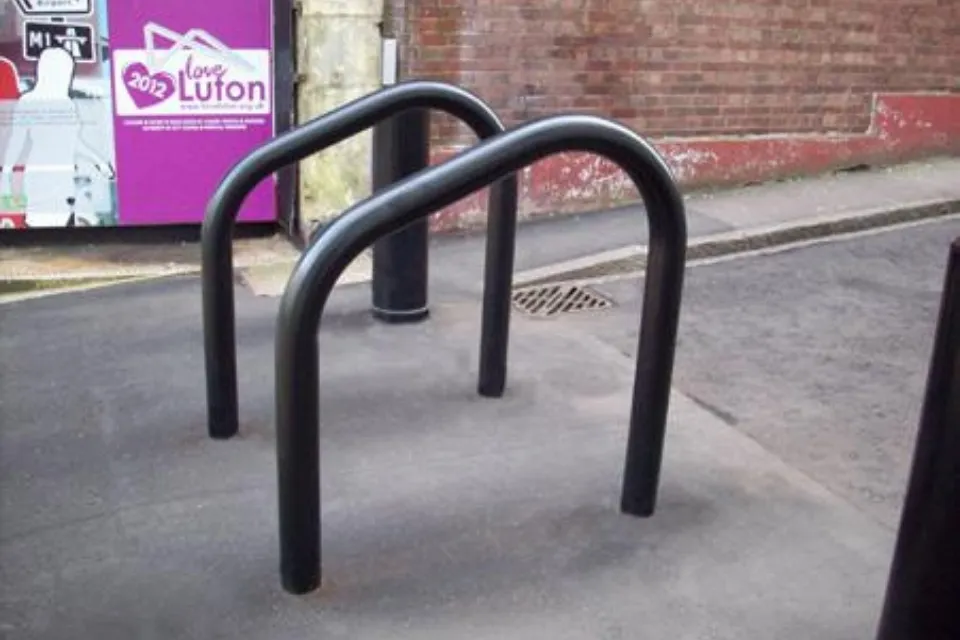

PAS68 Street Furniture – EAG08000 Range Eagle Automation have a range of PAS68 tested products that support the street furniture scene. Our cycle hoop module is highly versatile and it can be used to create planters, railing systems, and other similar products.

02Model: EAG080-20CR

Technical specification
A zero penetration short height cycle hoop.
Crash Rated to 3.5T (N1) @30mph (48kph).
PAS68	2010 V/3500(N1)/48/15:0.0/0.0
PAS68	2010 V/3500(N1)/48/90:1.5/0.0
Tested at 15 degree and 90 degree impact.
Shallow foundation	250mm
Height above ground	750mm
Available with gaps between 800mm and 1200mm
Finish	Galvanised and powder coated

03Model: EAG080-40CR

Technical specification
A zero penetration cycle hoop.
Crash Rated to 7.5T (N2) @40mph (64kph).
PAS68	2010 V/7500(N2)/64/15:0.0/10.8
PAS68	2010 V/7500(N2)/64/90:2.6/12.8
Tested at 15 degree and 90 degree impact.
Shallow foundation	250mm
Height above ground	1000mm
Available with gaps between 800mm and 1200mm
Finish	Galvanised and powder coated
