IWA14-1 Rising Arm Barrier – ARRESTOR EAG10040

IWA14-1 Rising Arm Barriers – ARRESTOR EAG10040

IWA14-1

At a glance

Technical specification

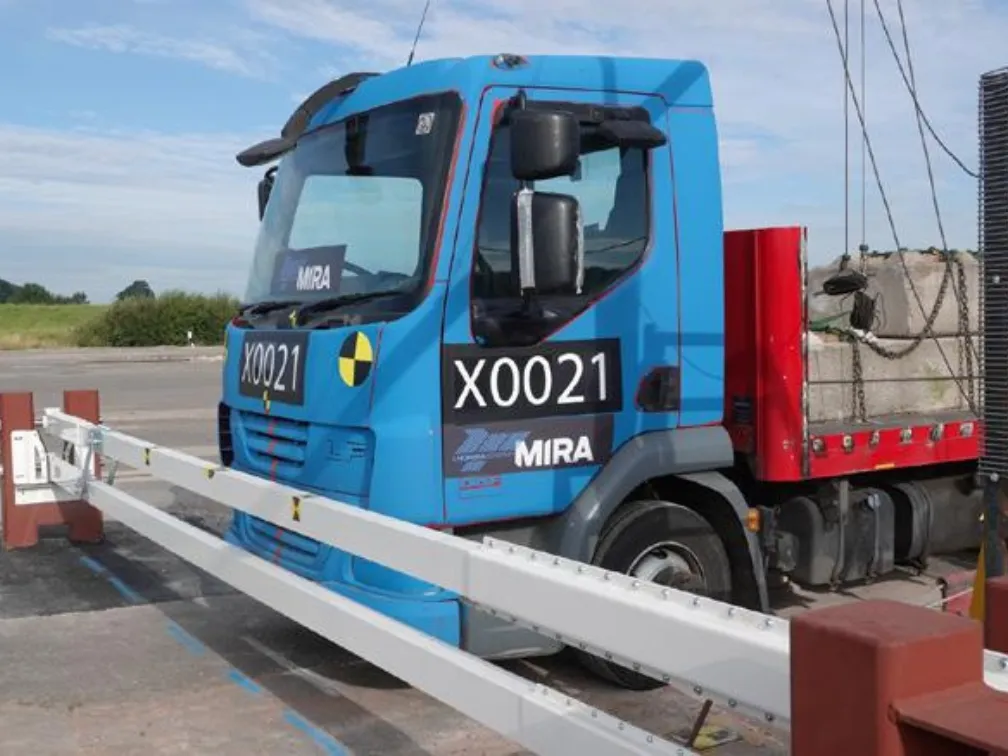

Crash Rated to 7.2T (N2A) @40mph (64kph).
Foundation depth	400mm (comprising 20mm blinding, 330mm concrete, 50mm surface finish).
IWA14-1	2013 V/7200(N2A)/64/90/3.0.
Span	Tested at 7100mm clear opening.

01Product Overview

The Binns Rising Arm Barrier is the latest addition to the Binns portfolio of impact rated products. Tested at a clear opening of 7.1m it meets our secure before impact (SBI) criteria utilizing an automatic or manual locking pin on the closing portal.

02Model: EAG10040

Technical specification
Crash Rated to 7.2T (N2A) @40mph (64kph).
IWA14-1	2013 V/7200(N2A)/64/90/3.0.
Foundation depth	400mm (comprising 20mm blinding, 330mm concrete, 50mm surface finish).
Span	Tested at 7100mm clear opening.

03Operation options

Automatic, PLC control and Hydraulic system.
Manual, counterweight attached to beam.
Manual, hand pump/drill drive HPU.

04Key Features

Secure Before Impact ’ – the product does not rely upon an impact for beam to catch into a locking system – these have proven unreliable and easily overcome and so NPSA have expressed significant preference toward products which are secured before impact.
