Hostile Vehicle Mitigation Systems

Crash-rated vehicle protection, forced-entry perimeter security and commercial access control. Not every system is crash-rated; check individual product ratings.

IWA14-1
LPS1175
PAS 68
ISO 22343-1

Request a Quote 877-572-4667

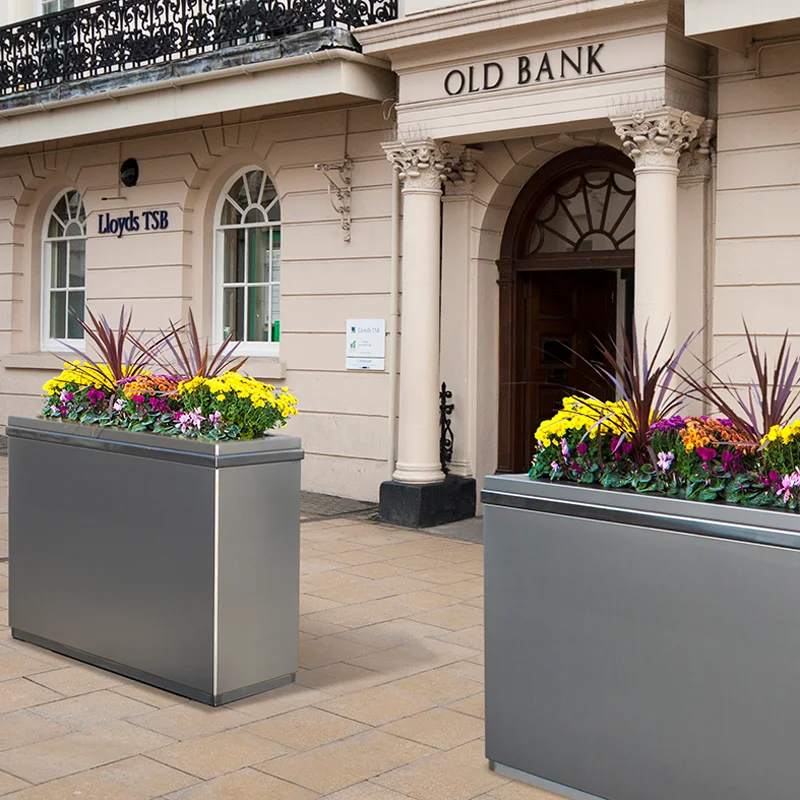

PAS 68 impact-rated stainless steel security planter shrouds installed at a historic bank entrance in the UK

Range scope. This range includes crash-rated vehicle protection, perimeter security and commercial access control; not every system is crash-rated. LPS 1175 Gates and LPS 1175 Turnstiles carry forced-entry ratings, not vehicle-impact ratings. Standards and ratings apply only to the individual product and tested configuration shown, not to every product in this range.

Hostile Vehicle Mitigation (HVM) Systems – Crash Protection for Canada

Binns Canada supplies hostile vehicle mitigation systems for industry buyers, site owners, specifiers, security consultants and contractors across Canada and the USA. Drawing on 85+ years of global protective security expertise, we help you specify bollards, fence-line barriers, gates and road blockers against the required threat. Relevant standards include IWA 14-1, PAS 68 and ISO 22343-1 for vehicle impact performance, and LPS 1175 for forced-entry resistance where applicable. Ratings and tested configurations vary by product; confirm the published test evidence for the model being specified.

Why industries and contractors choose Binns for HVM

Full system choice. Impact-rated bollards (shallow and surface), road blockers , rising arm barriers , bridge rail & street furniture, HVM gates & full-height turnstiles, and fence-line HVM systems.
Shallow foundations where available. Several ranges install at 200–400 mm foundation depths as shown below—ideal for utilities conflicts, retrofit projects and winter build schedules.
Certified performance. We only quote the test standards and ratings shown on each product page—no assumptions.
Made for real sites. Options tested with removable beams, long clear openings or freestanding anchor blocks help you adapt to airports, public realm, data centres, stadiums and government facilities across Canada.

Sam Bradbury is a Director with the Canadian Fence Association and Chairing the Committee for Standards and Best Practices within the CFA.

Impact-Rated Bollards — Fixed, Removable and Automatic

PAS 68 automatic bollard options include EAG060-30A, EAG060-30AT and EAG060-50A. Compare the individual model’s test rating, foundation and power requirements; these differ from fixed and removable bollard configurations.

Pick the foundation approach and performance you need.

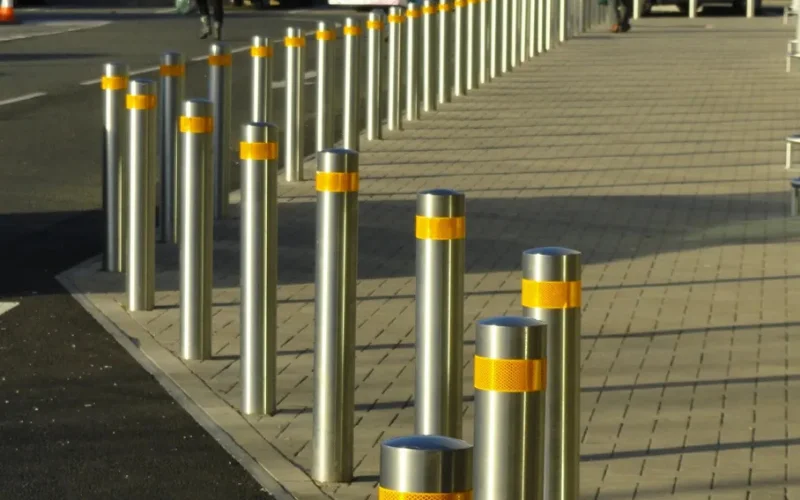

Shallow-mount stainless steel bollard array

Row of shallow-mount stainless steel security bollards with yellow reflective bands along a pedestrian pavement

Carstopper 30 – PAS 68:2010 V/1500(M1)/48/90:1.8/0.0; 200 mm foundation; shroud Ø114 × 950 mm ; spacing 1290 mm centres / 1200 mm between tested cores; height 850 mm .

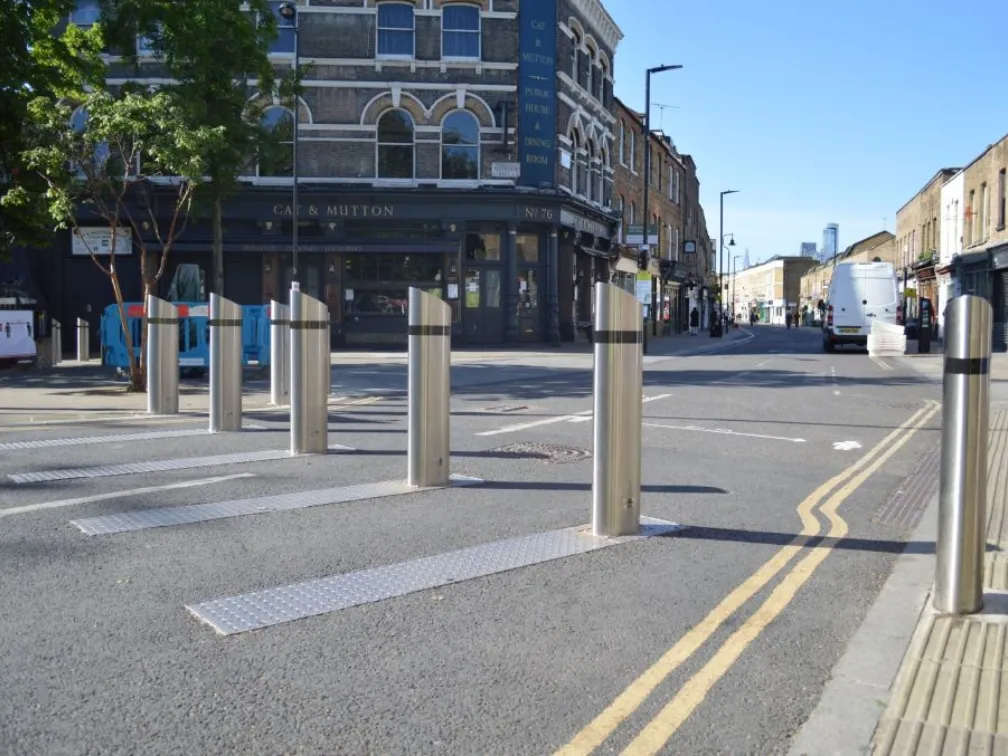

RB001-30 – PAS 68:2010 V/7500(N2)/48/90:3.1/0.0; 450 mm foundation (with bedding); shroud 134 × 250 × 1000 mm ; spacing 1300 mm centres / 1200 mm between tested cores; lid to D400 highways loading.

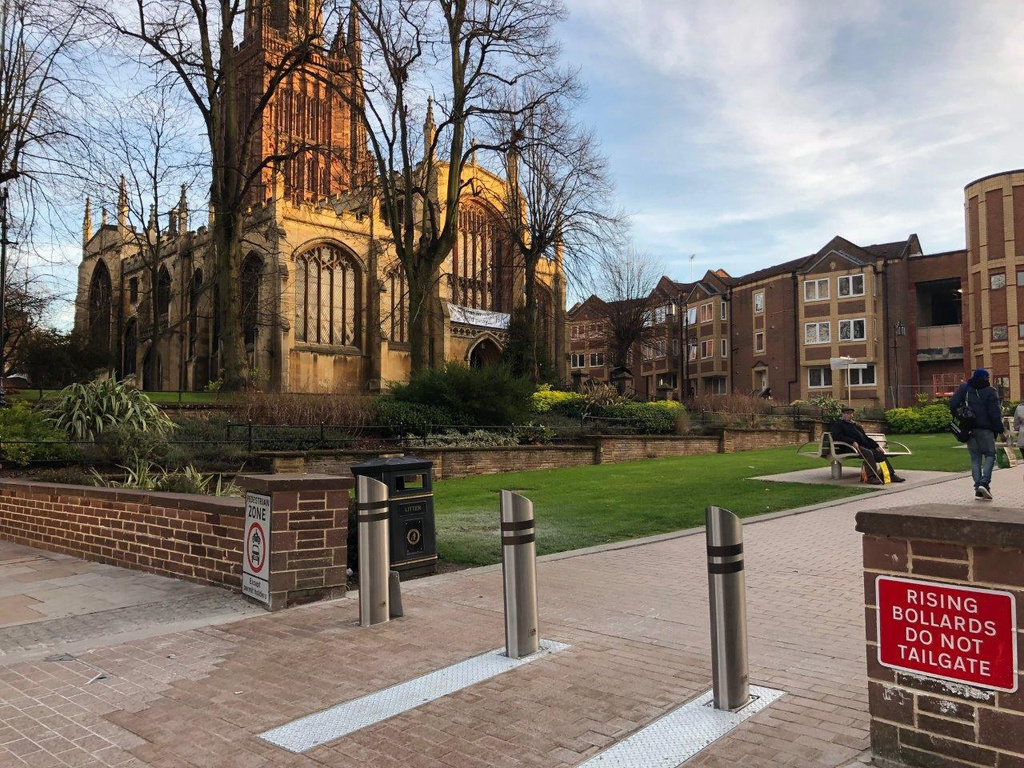

RB002-40 – IWA 14-1:2013 Bollard V/7200(N2A)/64/90:1.0; 495 mm foundation; shroud 235 × 305 × 1000 mm ; spacing 1400 mm centres; lid 24 tonnes load ; 5 mph recommended crossing speed.

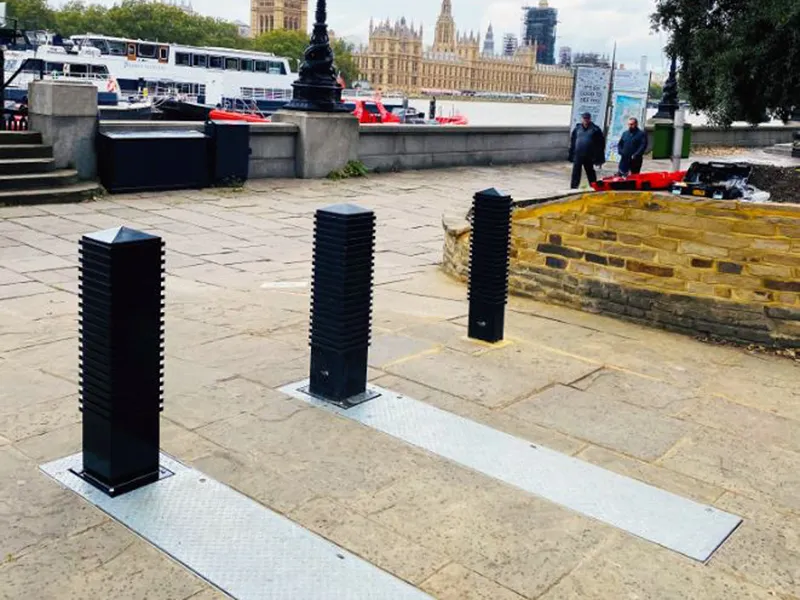

RB003-50 – IWA 14-1:2013 Bollard V/7200(N2A)/80/90:3.1; 580 mm foundation; shroud Ø273 × 1000 mm ; spacing 1400 mm centres; applications include public realm, stadiums, shopping centres and airports.

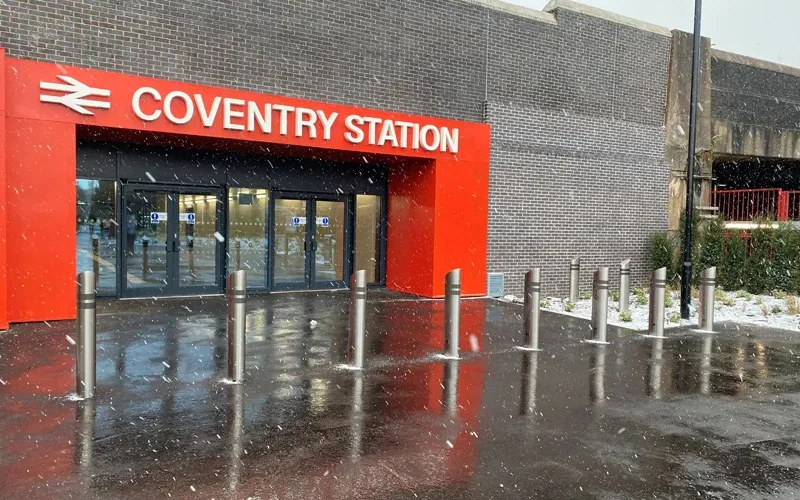

Shallow-mount bollard array at rail station entrance

Shallow-mount stainless steel security bollard array protecting the entrance of a UK rail station in winter

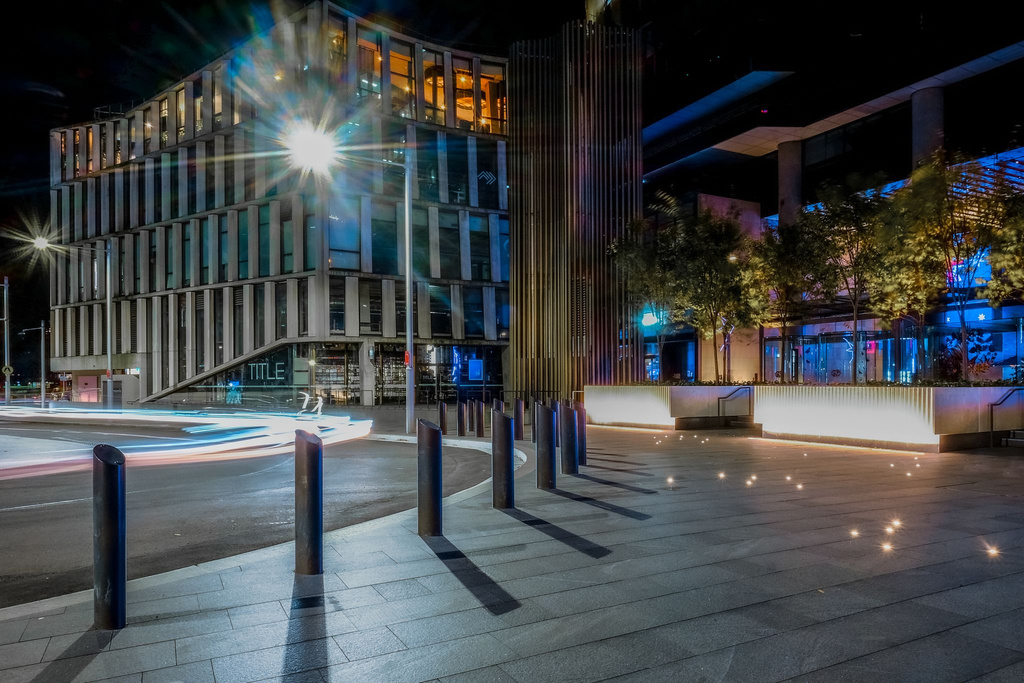

Truckstopper 3 – PAS 68:2007 V/7500(N2)/48/90/0.0/0.0; 400 mm foundation; shroud 134×250 mm ; spacing 1300 mm centres / 1200 mm between tested cores; height 900 mm ; min. array three .
Truckstopper 4 – PAS 68:2007 V/7500(N2)/64/90/10.3/4.0; 400 mm foundation; shroud 134×250 mm ; height 900 mm ; min. array three .

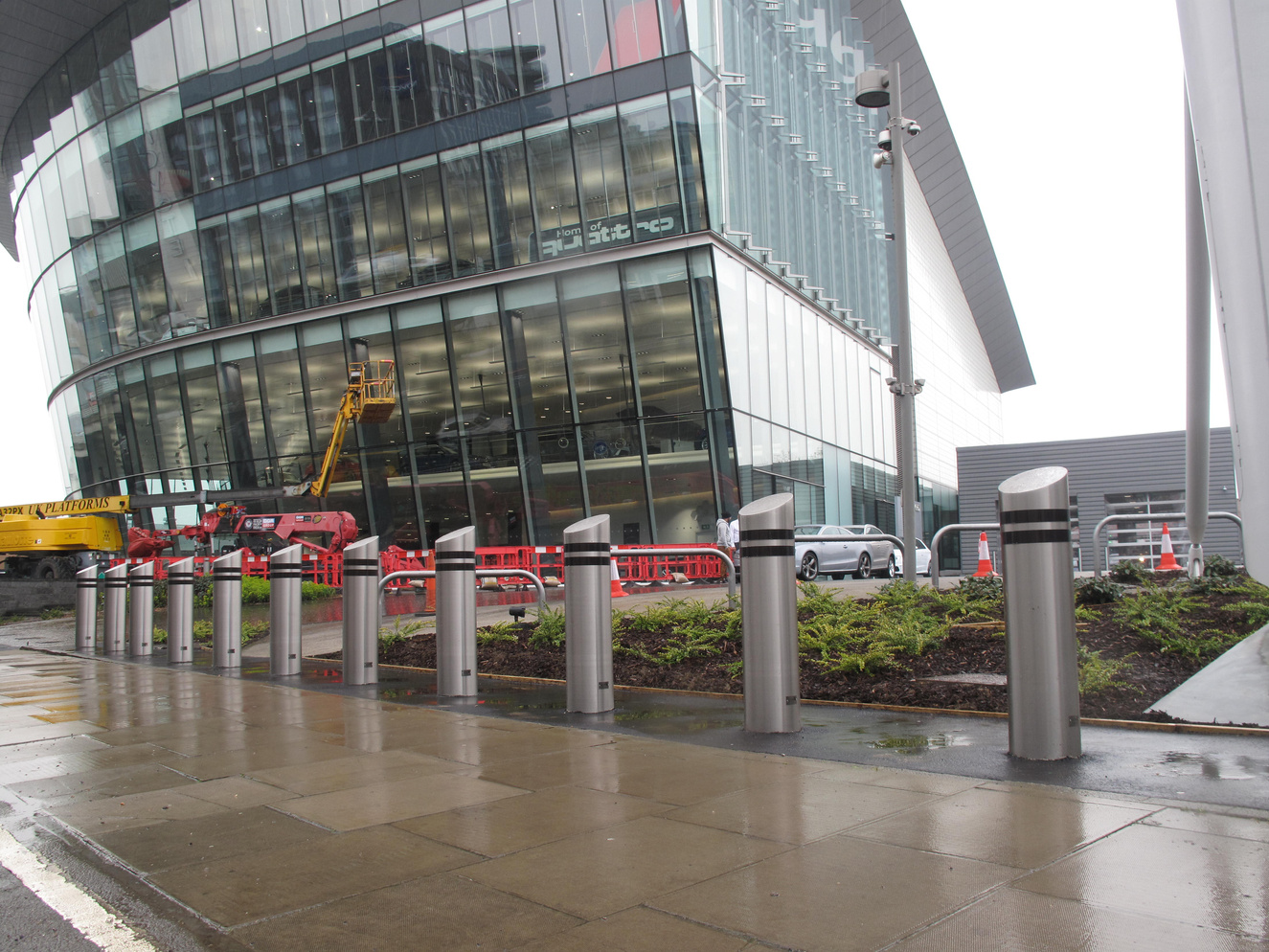

Truckstopper 5 – PAS 68:2010 V/7500(N3)/80/90:6.0/18.8 ; shroud Ø273 mm ; spacing 1400 mm centres / 1200 mm between tested cores; height 1050 mm ; 400 mm foundation; min. array three .

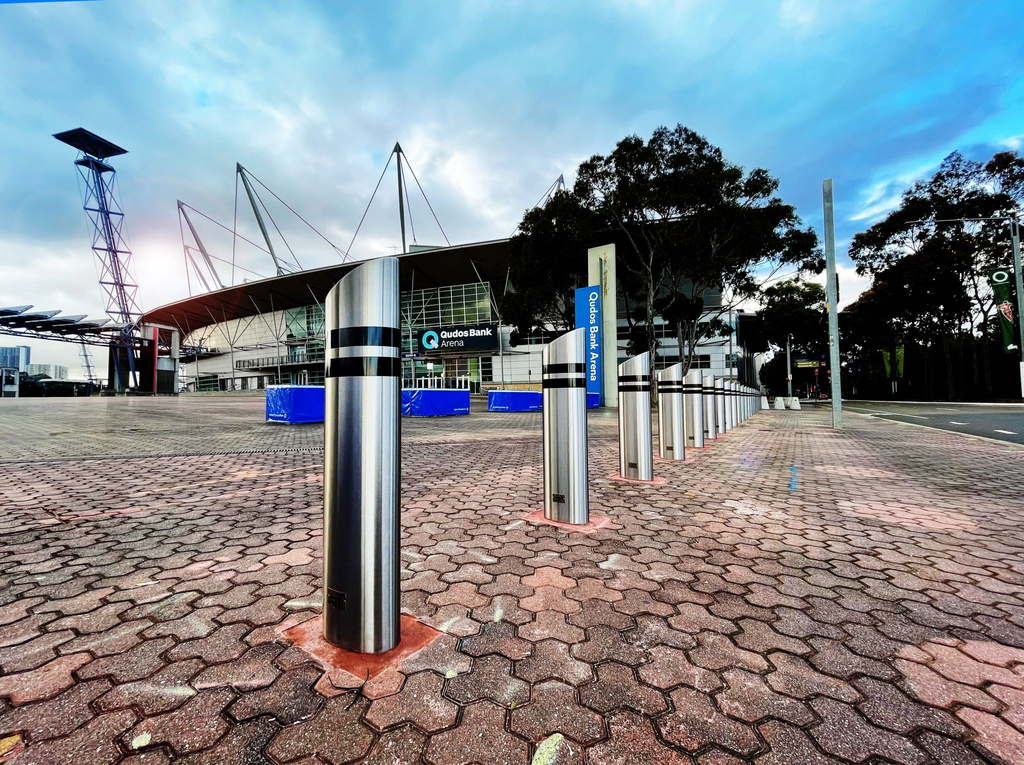

Truckstopper 6-30 – PAS 68:2010 V/7500(N2)/48/90:2.8/0.0; 200 mm foundation; 1500 × 460 × 930 mm shroud format; height 970 mm ; single unit tested.
Truckstopper 7 – PAS 68:2010 V/7500(N2)/48/90:2.8/0.0; 200 mm foundation; shroud 134×250 mm ; height 900 mm ; single unit tested.
Truckstopper 9-40 – IWA 14-1 Bollard V/7200(N2A)/64/90:2.4; 200 mm foundation; shroud Ø273 mm ; spacing 1400 mm centres / 1200 mm between tested cores; height 950 mm ; min. array three .
Truckstopper 9-50 – IWA 14-1:2013 Bollard V/7500(N3C)/80/90:10.5; 200 mm foundation; shroud Ø273 mm ; spacing 1400 mm centres / 1200 mm between tested cores; height 950 mm ; min. array three .

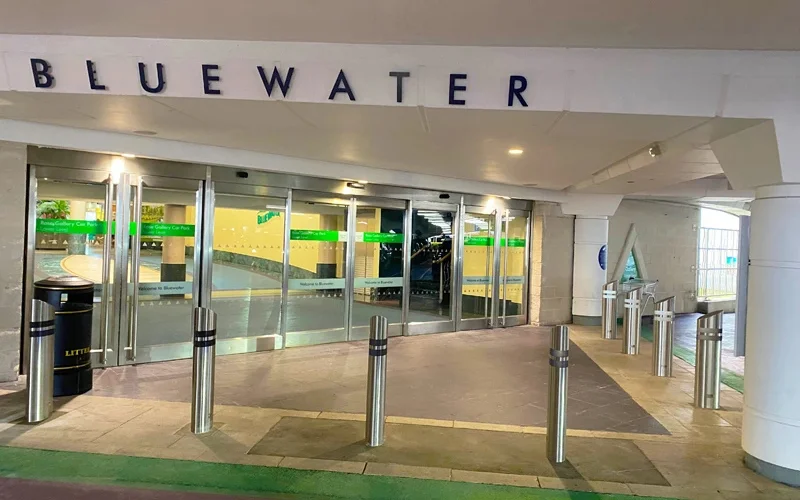

Surface-mount bollards at shopping centre entrance

Surface-mount and shallow stainless steel security bollards installed at a UK shopping centre entrance

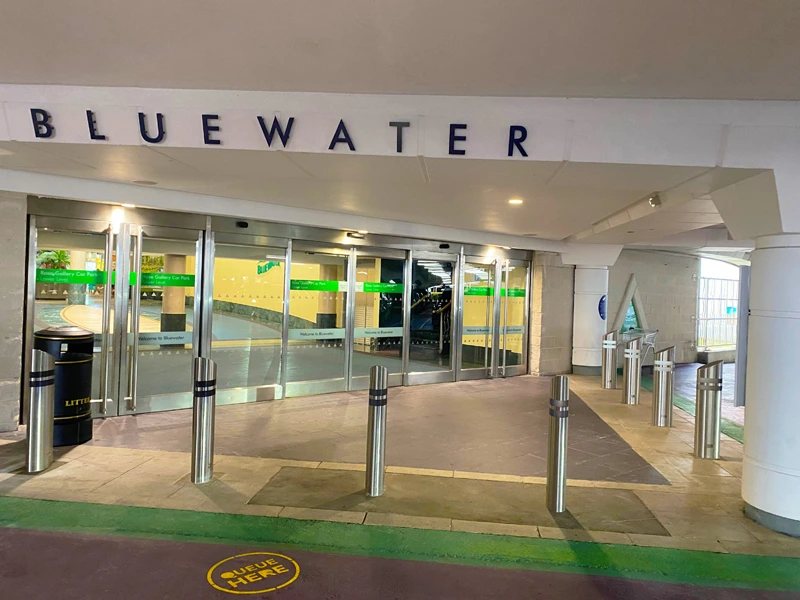

Truckstopper 10 – surface-mounted, single-tested (no array required); designed to follow ground contours around bends and inclines.

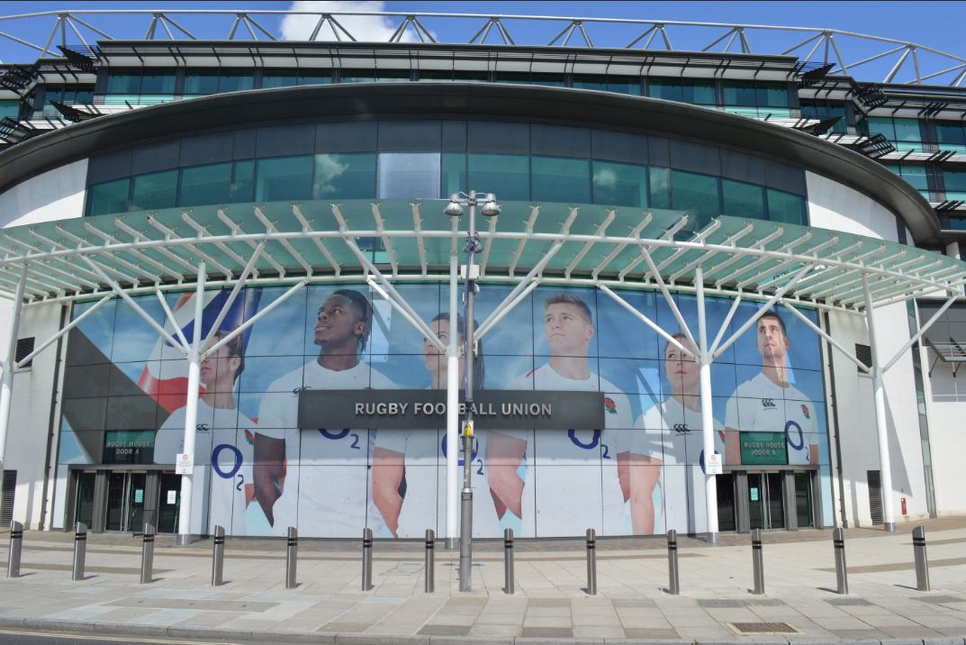

Truckstopper 17 – IWA 14-1 Bollard V/7200(N2A)/64/90:1.7; 200 mm foundation depth; spacing 1300 mm centres, 1200 mm between tested cores; height 970 mm above ground; single-tested; 316 satin-polished stainless shroud.

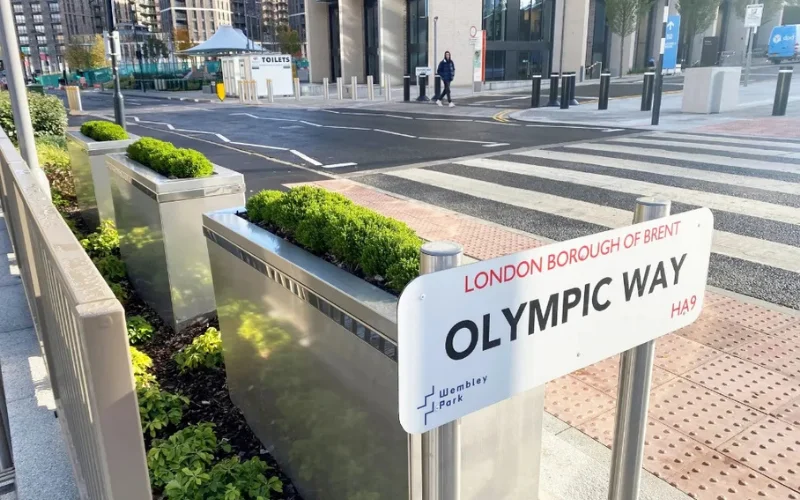

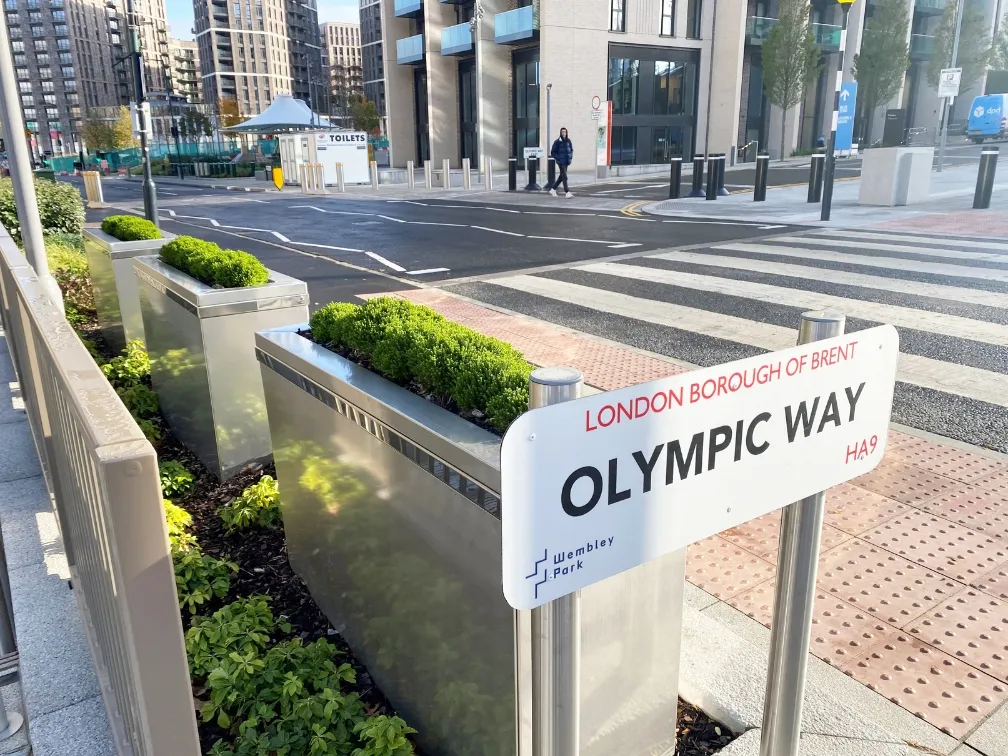

PAS 68 impact-tested security planter shrouds

PAS 68 impact-tested stainless steel security planter shrouds with planted greenery on an urban pedestrian boulevard

Planter 40 – PAS 68:2010 V/7500(N2)/64/90:2.8/7.2; 200 mm foundation; min. shroud 1500 × 460 × 930 mm ; height 900 mm ; single unit; 316 stainless with linen finish (standard).

All the above offer standard 316 stainless shrouds and optional hi-vis banding colours (Black, Yellow, Red, Blue, Orange, White or none) as indicated in the product data.

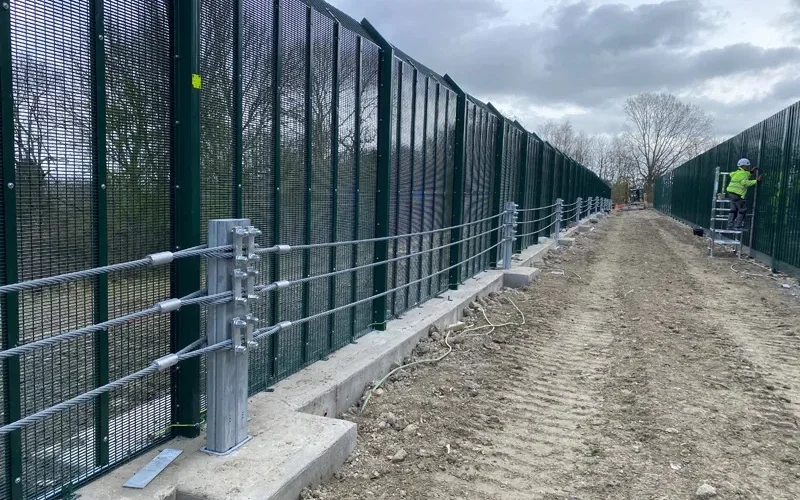

Fence-line hostile vehicle mitigation springline system being installed along a high-security perimeter fence

Fence-Line HVM Systems

When you need continuous perimeter protection or to add vehicle arrest capability behind an anti-climb fence, choose a tested fence-line HVM.

Springline 30 (embedded) – PAS 68:2010 V/7500(N2)/48/90:3.4/6.4; 400 mm foundation; main post height 1050 mm ; post spacing 7.320 m centre-to-centre; minimum tested length 25 m .
Surface-Mount Springline 30 – IWA 14-1:2013 Fence V/7200(N2A)/48/90:5.4 ; freestanding blocks 2000 × 1200 × 600 mm ; post spacing 12,200 mm ; minimum tested length 50 m .
Surface-Mount Springline 50 – IWA 14-1:2013 Fence V/7200(N3C)/80/90:6.8 ; four anchor blocks 2000 × 1200 × 600 mm ; post spacing 6100 mm ; minimum tested length 50 m.

These systems can sit behind an existing fence or be used as a freestanding barrier. Standard finish: galvanised posts and ropes .

Road Blockers & Rising Arm Barriers

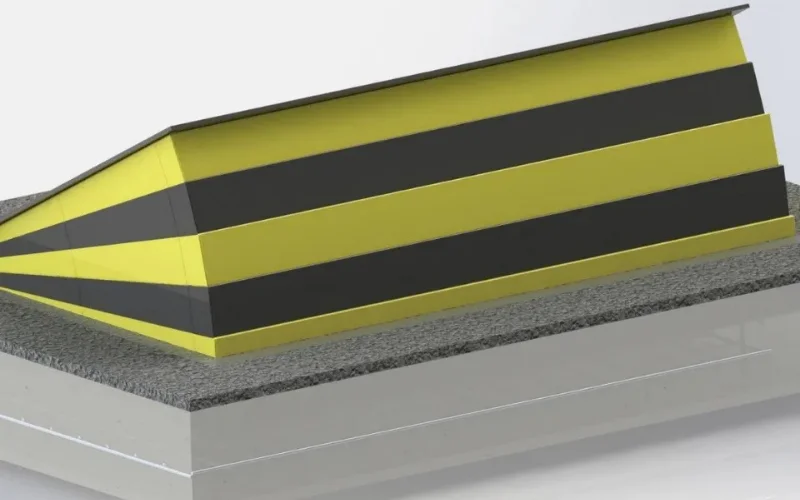

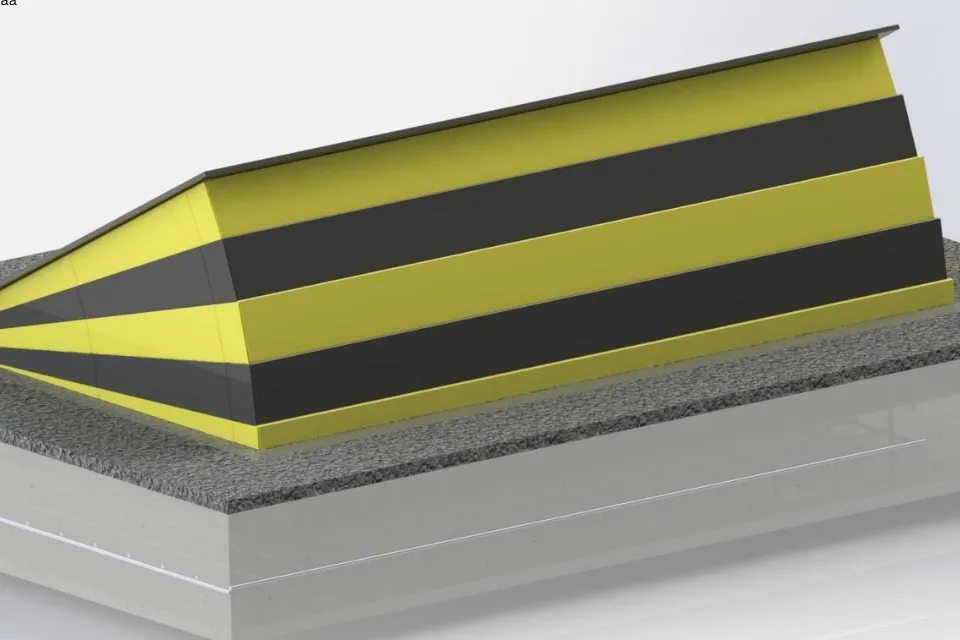

PAS 68 surface-mount road blocker render

3D render of a PAS 68 surface-mount road blocker with yellow and black hazard markings embedded in road surface

EAG05050 – crash-rated 7.2 T (N2A) @ 50 mph (80 kph); IWA 14-1:2013 V/7200(N2A)/80/90; embedded foundations listed in the spec.
EAG05050-SM (Surface-Mount) – PAS 68:2010 V/7500(N3)/80/90:7.34/26.4 ; tested at 3 m wide (10 mm gap); heavy-duty steel construction; raise speed approx 6–8 s (optional EFO 1–2 s ); foundation plinth dimensions provided for 2 m and 3 m widths.

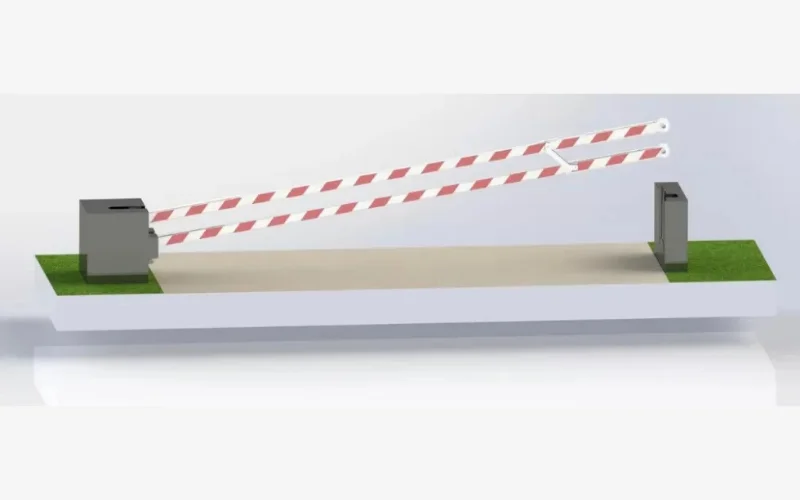

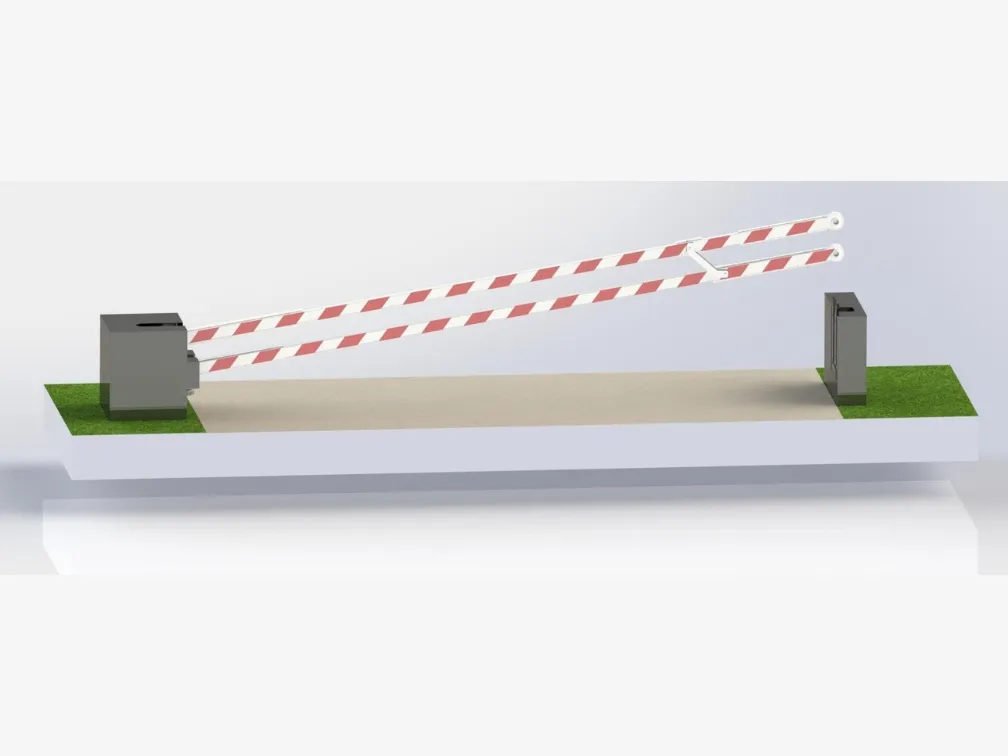

IWA 14-1 rising arm barrier EAG10040 render

3D render of IWA 14-1 rated rising arm barrier Arrestor EAG10040 with dual arms in raised position

Crash-rated 7.2 T (N2A) @ 40 mph (64 kph) – IWA 14-1	2013 V/7200(N2A)/64/90/3.0.
Foundation depth	400 mm (with construction mix shown).
Clear opening tested	7.1 m .
Operation	Automatic PLC/hydraulic, manual counterweight, or manual hand pump/drill HPU.
Key benefit	Secure Before Impact operation (does not rely on the beam catching a lock after impact).

Bridge Rail & Street Furniture Barriers

IWA14-1 Bridge Rail EAG080-30BR – 7.2 T (N3C) @ 30 mph (48 kph); result: IWA 14-1:2013 V/7200(N3C)/48/30:0.5 ; foundation depth 163 mm (50 mm concrete, 50 mm sand, 63 mm surface); removable beams; typical spans tested to 5380 mm clear opening.

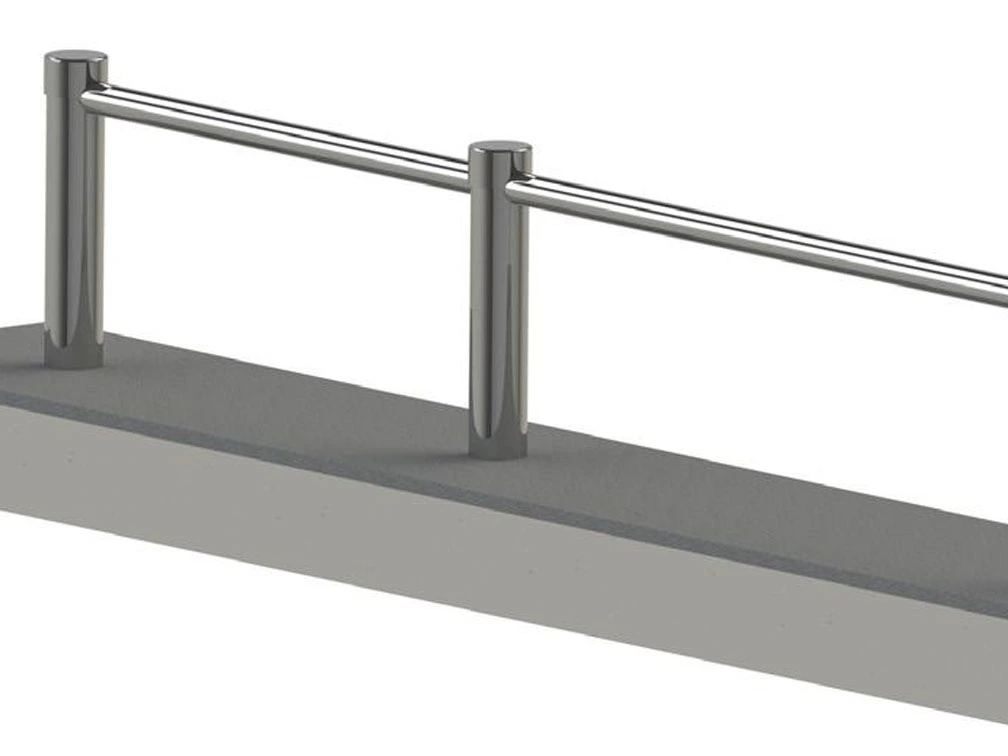

PAS 68 Handrail EAG080-30PR – Crash Rated 7.5 T (N2) @ 30 mph (48 kph); PAS 68:2010 V/7500(N2)/48/90:1.5/0.0; foundation 400 mm ; uprights at 3 m centres; removable crossbars .
PAS 68 Planter EAG080-30PL – modular planter/rail elements for streetscape protection.
PAS 68 Cycle Hoops – EAG080-20CR: 3.5 T (N1) @ 30 mph (PAS 68:2010 V/3500(N1)/48/15:0.0/0.0), 750 mm height, 250 mm shallow foundation. EAG080-40CR: 7.5 T (N2) @ 40 mph (PAS 68:2010 V/7500(N2)/64/15:0.0/10.8), 1000 mm height, 250 mm shallow foundation.

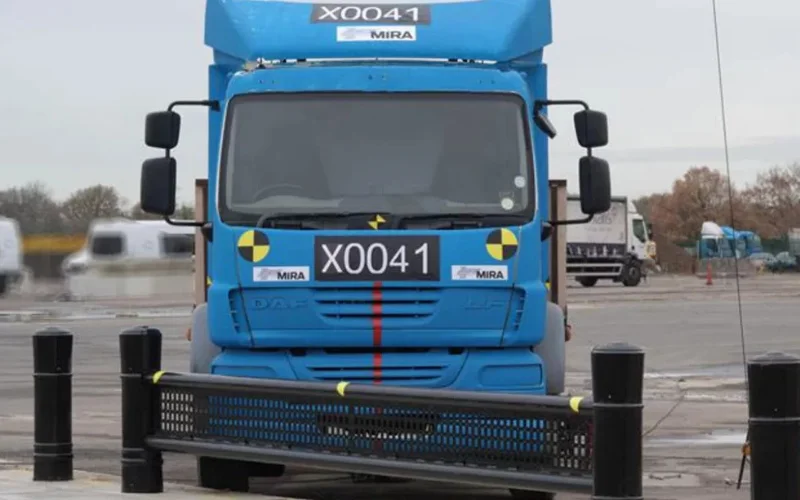

PAS 68 bollard crash test with a 7.5 tonne MIRA test truck approaching a surface-mount security bollard array

HVM Gates, Speed Gates & Full-Height Turnstiles

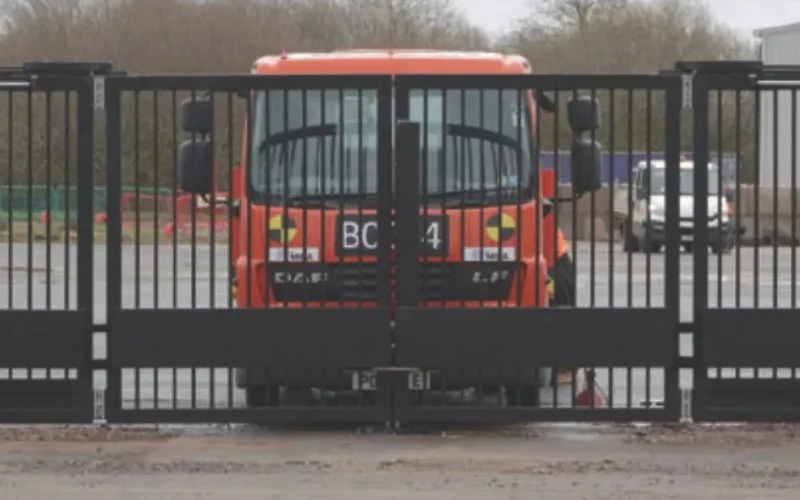

IWA 14-1 bi-folding HVM gate EAG01040D crash test

IWA 14-1 trackless bi-folding HVM gate EAG01040D during a crash impact test with a heavy goods vehicle

Crash-rated	7.2 T (N2A) @ 40 mph (64 kph).
Certified to LPS 1175	A1 (SR1), B3 (SR2), C5 (SR3) .
Approx. operation	10–15 s plus 3 s locking pin (per spec).
Power	240 V 16 A.

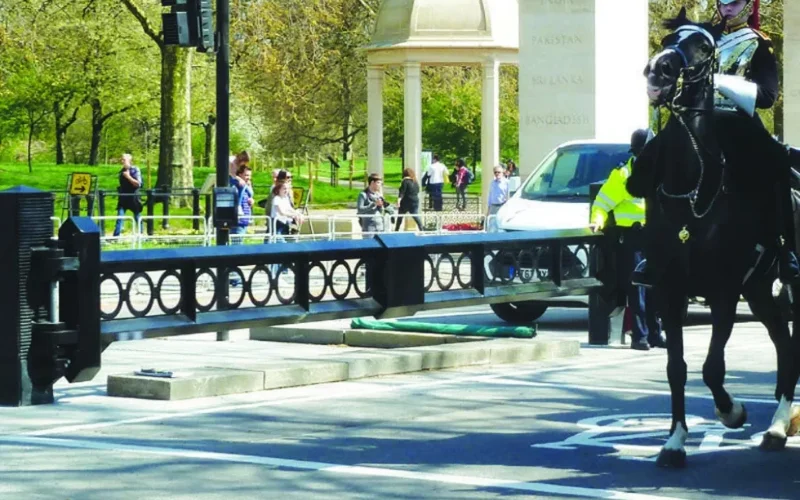

IWA 14-1 manual lockdown gate at government site

IWA 14-1 manual lockdown security gate with decorative fretwork deployed across a road at a UK government site

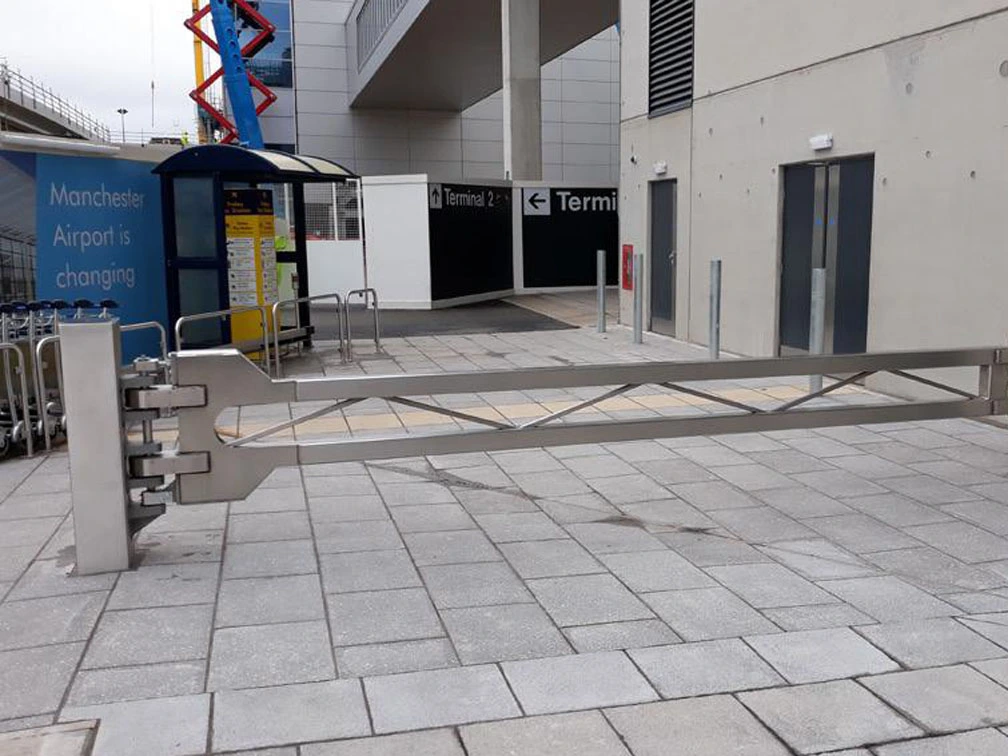

EAG04040 – IWA 14-1 crash-tested to 7.2 T (N2A) @ 40 mph ; also shown tested at 1.5 T (M1) @ 50 mph; foundation depths 250 mm and 420 mm ; tested to 8 m opening ; removable posts; available in stainless steel.

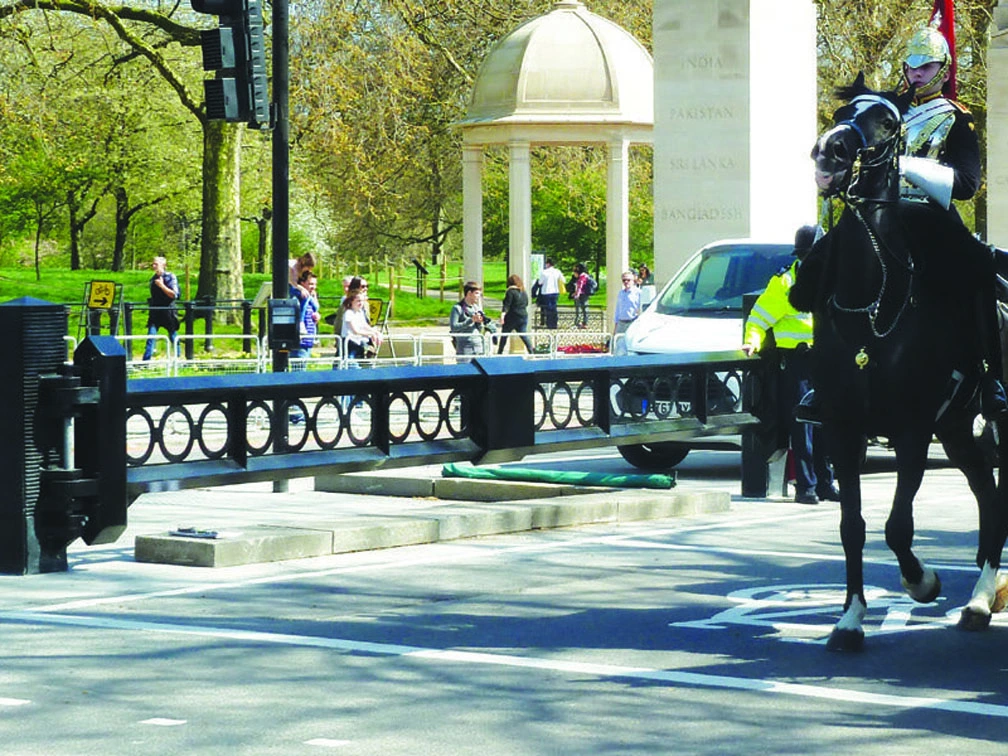

EAG04040W (Westminster) – shallow, mid and full-depth foundation options; tested to 8 m ; deployed at historic locations with approved fretwork designs.

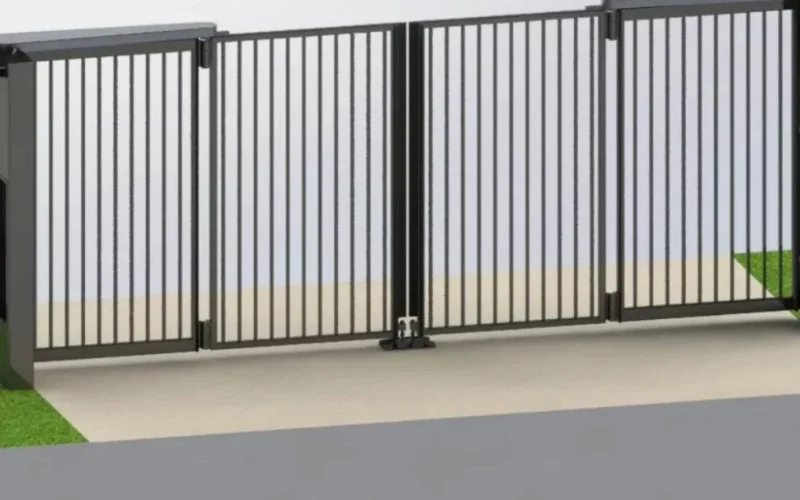

Cantilever bi-folding speed gate industrial render

3D render of a dark steel cantilever bi-folding speed gate for industrial and commercial perimeter access control

PAS 68 cantilever sliding gates EAG02040 and EAG02050 — tested at 8 m clear opening; standard operating speed 150–200 mm/s; 330 mm shallow foundation plus surface finish; 240 V, 16 A supply. See the model-specific PAS 68 test rating.
PAS 68 swing gate EAG03040 — manual double-leaf opening up to 8.0 m; automated single-leaf opening up to 6.0 m. Tested at an 8.0 m clear opening with a 7.5 t (N2) vehicle at 64 km/h; PAS 68:2010 V/7500(N2)/64/90:1.1/0.0.
Bi-Folding Speed Gate (EAG50010) – opening up to 10.0 m ; approx 8 s open/close; very secure with frequency inverter control.

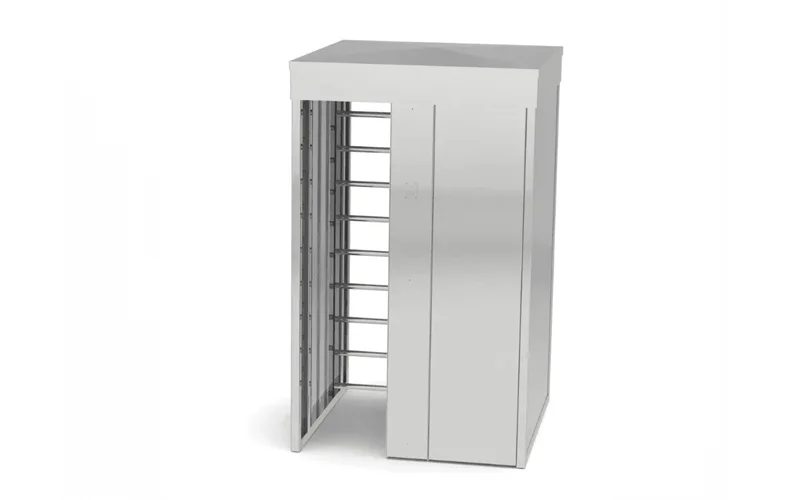

LPS 1175 full-height stainless steel turnstile render

3D render of a stainless steel LPS 1175 full-height security turnstile for high-security pedestrian access control

Full-height turnstiles independently certified to LPS 1175 Issue 8 (LPCB ref. shown in the spec).
Single turnstiles available to A1, B3, C5, D10 ; double assemblies to A1, B3, C5. Standard features include 120° locking head , LED status lights, 240 V supply, powder-coated finish, and stainless options.

Where these systems are being used in Canada

Application lists include: public realm, stadiums, retail parks, leisure attractions, critical infrastructure, police stations, government buildings, stadiums and Sports Arenas/Venues, data centres, shopping centres and airports . Our combinations of shallow-mount bollards, street furniture and surface-mount fence lines make it easier to build around utilities, winter ground conditions and tight programs.

Certifications & Industry Affiliations

Your shared certificates and memberships reinforce build quality and compliance:

IWA14-1, PAS68
Association of Fencing Industries (AFI), American Fence Association (AFA), Fence Workers Association (FWA)
Canadian Fence Association (CFA) – active participation

Working with Binns Canada

Specification help. We’ll match a rating (IWA 14-1 or PAS 68) to your risk profile and site constraints using only the validated data above.
Fabricator-friendly. Options for surface-mount or shallow-mount foundations cut excavation and speed up installs.
Nationwide supply & support. We support projects from Vancouver and Calgary to the GTA, Ottawa, Montréal and Atlantic Canada.

Request drawings or a take-off: 877-572-4667 • [email protected]

FAQs

What HVM standards do your barriers meet?

HVM specifications can call for IWA 14-1, PAS 68 or ISO 22343-1 vehicle impact performance. LPS 1175 addresses forced-entry resistance where applicable. Check each model’s published rating, test configuration and supporting documentation rather than assuming every product meets every standard. Published examples include:

• Truckstopper 9-50 — certified to IWA 14-1:2013 Bollard V/7500(N3C)/80/90:10.5 • Truckstopper 3 — certified to PAS 68:2007 V/7500(N2)/48/90/0.0/0.0 • EAG01040D bi-folding HVM gate — certified to LPS 1175 A1(SR1), B3(SR2), C5(SR3) • Full-height turnstiles — independently certified to LPS 1175 Issue 8

If your project requires ISO 22343-1 or another specific standard, ask us to confirm a suitable system and provide the applicable test evidence before specification. An existing IWA 14-1 or PAS 68 rating is not a claim of ISO 22343-1 certification.

Do you offer shallow- or surface-mount options for sites with utilities?

Yes. You’ll find multiple shallow solutions at 200–400 mm foundation depth, plus true surface-mount systems. Examples from our published specifications: Carstopper 30 (200 mm) ; Truckstopper 6-30 (200 mm) and Truckstopper 7 (200 mm) ; Truckstopper 3/4/5 (400 mm) ; Planter 40 (200 mm) ; RB001-30 (450 mm) , RB002-40 (495 mm) , RB003-50 (580 mm) ; Springline 30/50 Surface-Mount (freestanding blocks); Titan EAG05050-SM road blocker (surface-mount); Truckstopper 10 (surface); Cycle Hoops with 250 mm shallow foundations; Bridge Rail EAG080-30BR with ~163 mm construction depth.

Can I add HVM behind an existing anti-climb fence?

Yes. Our Springline 30 fence-line system (embedded) and the Surface-Mount Springline 30/50 are designed to sit behind an existing fence or work as a freestanding line. Specs show the embedded version tested to PAS 68:2010 V/7500(N2)/48/90:3.4/6.4 and the surface-mount versions tested to IWA 14-1 with minimum tested lengths noted.

What clear openings can your HVM gates and barriers cover?

Rising Arm Barrier EAG10040 – clear opening tested 7.1 m .
LOCKDOWN manual gates (EAG04040 / EAG04040W) – tested to 8 m opening with shallow or standard foundations.
PAS 68 cantilever sliding gates EAG02040 / EAG02050 — tested at 8.0 m clear opening.
PAS 68 swing gate EAG03040 — up to 8.0 m manual double-leaf or 6.0 m automated single-leaf opening.
Bi-Folding Speed Gate EAG50010 – opening up to 10.0 m .
Road Blocker EAG05050-SM – surface-mount models shown tested at 3 m width in the data.

Are there removable or access-friendly options for street environments?

Yes. Our Bridge Rail EAG080-30BR includes lightweight removable beams; the PAS 68 Handrail EAG080-30PR has independent crossbars that can be removed within minutes; LOCKDOWN gates list removable posts . These details make temporary vehicle access and maintenance easier. We also offer all of our Truckstopper range of bollards in both fixed and removable configurations.

How fast do automated barriers operate?

The data sheets show typical figures:

EAG10040 rising arm – approx. 10–15 seconds plus ~3 seconds for locking.
Bi-Folding Speed Gate EAG50010 – approx. 8 seconds to open/close.
PAS 68 cantilever sliding gates EAG02040 / EAG02050 — standard operating speed 150–200 mm/s. Actual run-times depend on opening width, controls and site conditions.

What power supplies do the automated systems need?

Where listed, the products use standard mains supply: 240 V AC for gates (e.g., cantilever and swing) and 240 V 16 A for the EAG01040D HVM bi-fold. Full-height turnstiles show 240 V AC, 5 A . Several products have manual override options or manual variants (e.g., LOCKDOWN gates; manual counterweight on the rising arm).

What materials and finishes are available?

Bollard shrouds are shown as 316 stainless steel (polished or linen finishes) with optional RAL powder coating on applicable products. Many bollards include hi-vis banding choices: Black, Yellow, Red, Blue, Orange, White, or no banding . Fence-line HVM posts and ropes are galvanised as standard. Gate and turnstile frames list powder-coated finishes to a standard RAL.

Where do these systems typically get installed in Canada?

Application lists include public realm, stadiums, retail parks, leisure attractions, critical infrastructure, police stations, government buildings, data centres, shopping centres and airports . We support industry buyers, owners, specifiers and contractors nationwide—West Coast, Prairies, Ontario/Quebec and Atlantic projects.

What information should I send for a fast quote and drawing pack?

Share your target standard/rating (IWA 14-1, PAS 68 or ISO 22343-1), opening width , any foundation limits (e.g., max depth near utilities), site layout or sketches, preferred finish/colour , need for removable beams or posts , and whether you’re integrating with anti-climb fencing , turnstiles , or automated gates . We’ll match a model (for example, a 200 mm shallow-mount bollard versus a surface-mount line) and return a buildable proposal.
