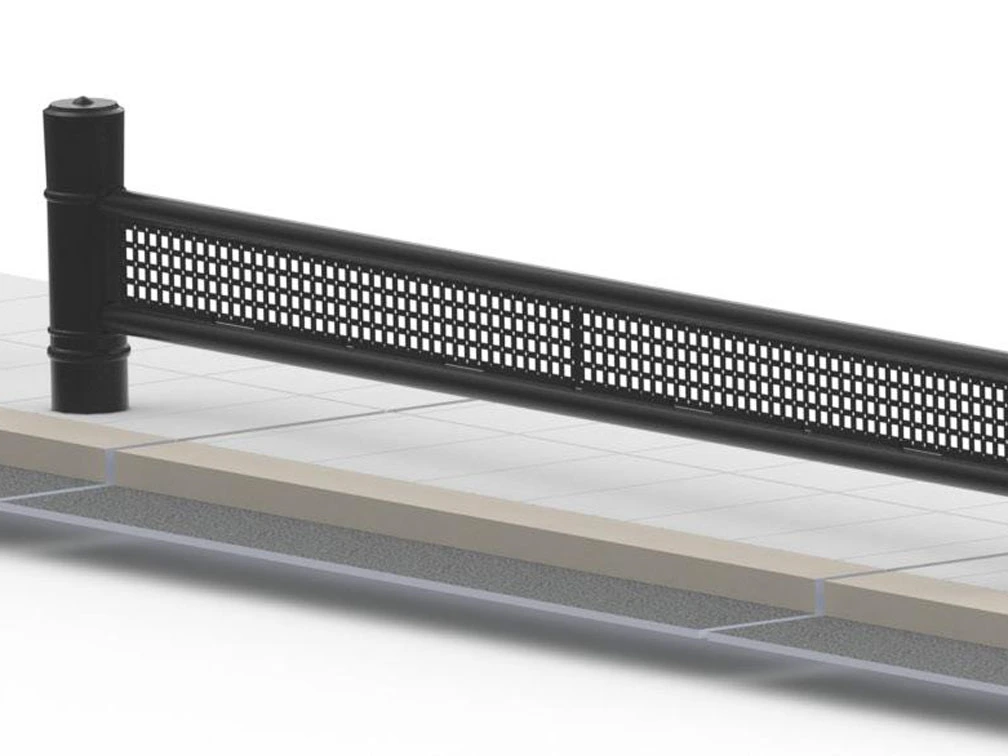

IWA14-1 Bridge Rail EAG080-30BR — source product image
Hostile Vehicle Mitigation Systems

IWA14-1 Bridge Rail EAG080-30BR

  • IWA14-1
Request a Quote 877-572-4667

At a glance

Technical specification
IWA14-1 Rating7.2T (N3C) vehicle @ 30mph (48kph)
Foundation depth163mm (comprising 50mm concrete, 50mm sand, 63mm surface finish)
ResultIWA14-1:2013 V/7200[N3C]/48/30:0.5
DiameterBollards 194mm o/d

Product Overview

The IWA14-1 Bridge Rail (model EAG080-30BR) is the latest addition to Binns portfolio of impact-rated street furniture products.

Tested with a super-shallow foundation of just 50mm, with no anchor fixings specifically for bridge deck applications, this product has far wider potential & also meets our secure before impact (SBI) criteria.

Technical specification
IWA14-1 Rating7.2T (N3C) vehicle @ 30mph (48kph)
ResultIWA14-1:2013 V/7200[N3C]/48/30:0.5
Foundation depth163mm (comprising 50mm concrete, 50mm sand, 63mm surface finish)
DiameterBollards 194mm o/d
AreaMin 5no. bollards, total 1,800mm x 15,200mm (includes maximum 4100mm foundation span)
SpanTested at 5380mm clear opening, 4100mm clear between foundations (+/-75mm)
Expansion150mm once installed
OperationLightweight removable beam(s), may require mechanical assistance
DesignHorizontal beams can be fitted with bespoke fretwork to suit local streetscape architecture.

IWA14-1 Rating: 7.2T (N3C) vehicle @ 30mph (48kph)

Result: IWA14-1:2013 V/7200[N3C]/48/30:0.5

Foundation depth: 163mm (comprising 50mm concrete, 50mm sand, 63mm surface finish)

Diameter: Bollards 194mm o/d

Area: Min 5no. bollards, total 1,800mm x 15,200mm (includes maximum 4100mm foundation span)

Span: Tested at 5380mm clear opening, 4100mm clear between foundations (+/-75mm)

Expansion: 150mm once installed

Operation: Lightweight removable beam(s), may require mechanical assistance

Design: Horizontal beams can be fitted with bespoke fretwork to suit local streetscape architecture.

Next step

Specify IWA14-1 Bridge Rail EAG080-30BR on your project

Tell us the site, the perimeter length and the rating you need to meet. We'll come back with a specification and a quote.

  • Certified systems supplied across Canada and the USA
  • Installer-friendly details and full technical drawings
  • Support from specification through to handover

Request a quote

IWA14-1 Bridge Rail EAG080-30BR — tell us about your site and we'll respond with a specification.
