Surface Mount Springline 30

At a glance

Technical specification
Main Post Spacing	12200mm Centre To Centre
Security Rating	Iwa 14- 1: 2013 Fence V/7200[n2a]/48/90:5.4
Tested Core Dimensions	200mm L X 100mm W 670mm H From Top Of Block (1270mm H Over All)
Minimum Tested Length	50m

01Product Overview

Surface mount springline 30 is an innovative surface mount fence line system that is capable of offering instant protection from hostile vehicle or a simple protection from errant vehicles. The product is completely freestanding, with no requirement for concrete foundations or surface pinning, allowing for temporary or permanent deployment, easy relocation for sites with changing infrastructure, and total avoidance of buried utility clashes.

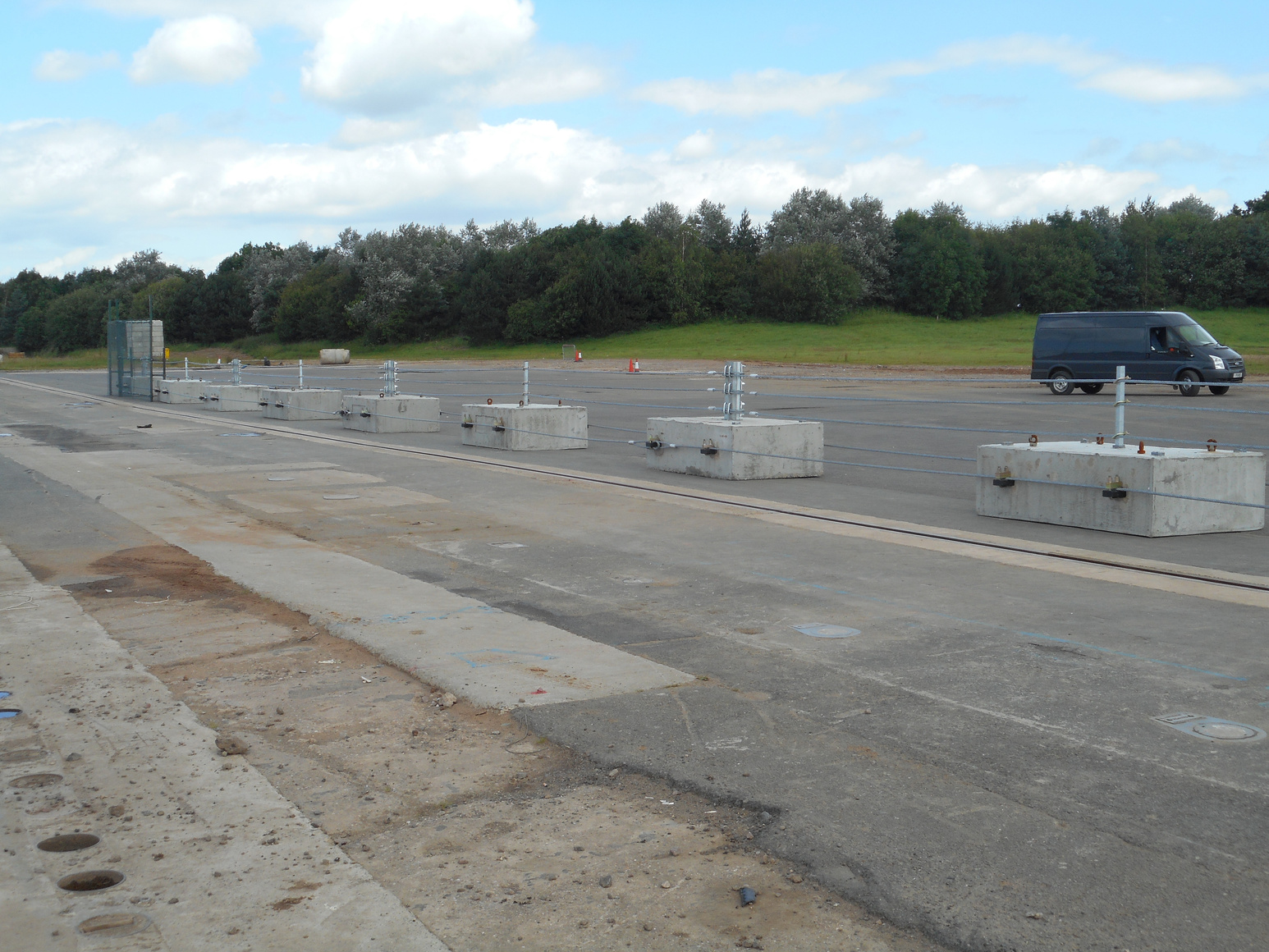

Due to the unique design of springline 30, the system can be installed on uneven or undulating ground; around corners, bends, or on an incline. The system has been independently crash-tested in accordance with iwa-14 to arrest a 7.2 tonne vehicle travelling at 30mph/48kph.

Surface mount springline 30 can be fitted with a high security mesh fence, or can also be quickly retrofitted behind an existing anti-climb or cut through fence to add iwa-14 compliance to the perimeter.

With the use of our patented spring steel design, the springline 30 surface system flexes on impact, absorbing the impact energy, resulting in minimal movement of the end posts. This product is fully compatible with our embedded springline 30, and a 50mph rated version is also available (see surface mount springline 50)

02SURFACE MOUNT SPRINGLINE 30 SPECIFICATION DETAILS

Technical specification
Anchor Block Dimensions	2000mm L X 1200mm W X 600mm H
Main Post Spacing	12200mm Centre To Centre
Security Rating	Iwa 14- 1: 2013 Fence V/7200[n2a]/48/90:5.4
Tested Core Dimensions	200mm L X 100mm W 670mm H From Top Of Block (1270mm H Over All)
Minimum Tested Length	50m
Finish Details	Galvanised Posts And Ropes As Standard
Foundation Depth	Freestanding (Surface Mounted)
