Truckstopper 4

PAS68

At a glance

Technical specification
Bollard Spacing	1300mm Centres, 1200mm Spacing Between Tested Cores
Height Above Ground	900mm
Security Rating	(Bsi Pas68:2007) V/7500/n2/64/90/10.3/4.0
Tested Core Dimensions	100mm W X 150mm L X 900mm H From Ffl

01Product Overview

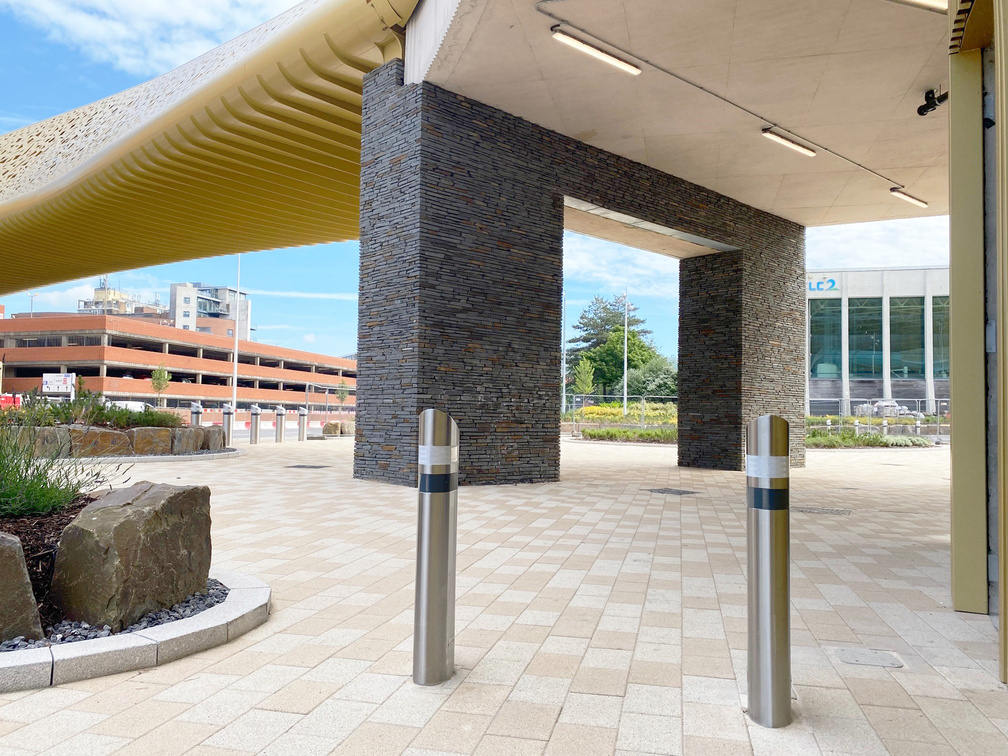

Truckstopper 4 is one of the shallowest impact tested bollards availableon the market today, with a foundation depth of just 400mm, reducing the need to re-divert utilities. This allows for installation at a fraction of the cost of traditional bollards.

Unlike traditional steel tube bollards, Binns truckstopper 4 utilizes our patented spring steel design, creating a durable, ultra slimline product that is ideal for blending into the public realm.

Truckstopper 4 is single tested, so does not need to be installed in an array. The system is designed to follow the contours of the ground so can manoeuvre around corners, bends, and can be installed on a incline.

02Truckstopper 4 Specification Details

Technical specification
Shroud measurements	134mm X 250mm As Standard
Bollard Spacing	1300mm Centres, 1200mm Spacing Between Tested Cores
Height Above Ground	900mm
Security Rating	(Bsi Pas68:2007) V/7500/n2/64/90/10.3/4.0
Tested Core Dimensions	100mm W X 150mm L X 900mm H From Ffl
Minimum Array	Three
Cover Material	316 Satin Polished Stainless Steel As Standard
Ral Options	ANY STANDARD RAL COLOUR
Foundation Depth	400mm

03Finishes

Oval 316 stainless steel mitre top cover with up to 2 hi-vis bands as standard. Alternative finishes available. Please contact your sales representative for more details.
