Commercial Gates

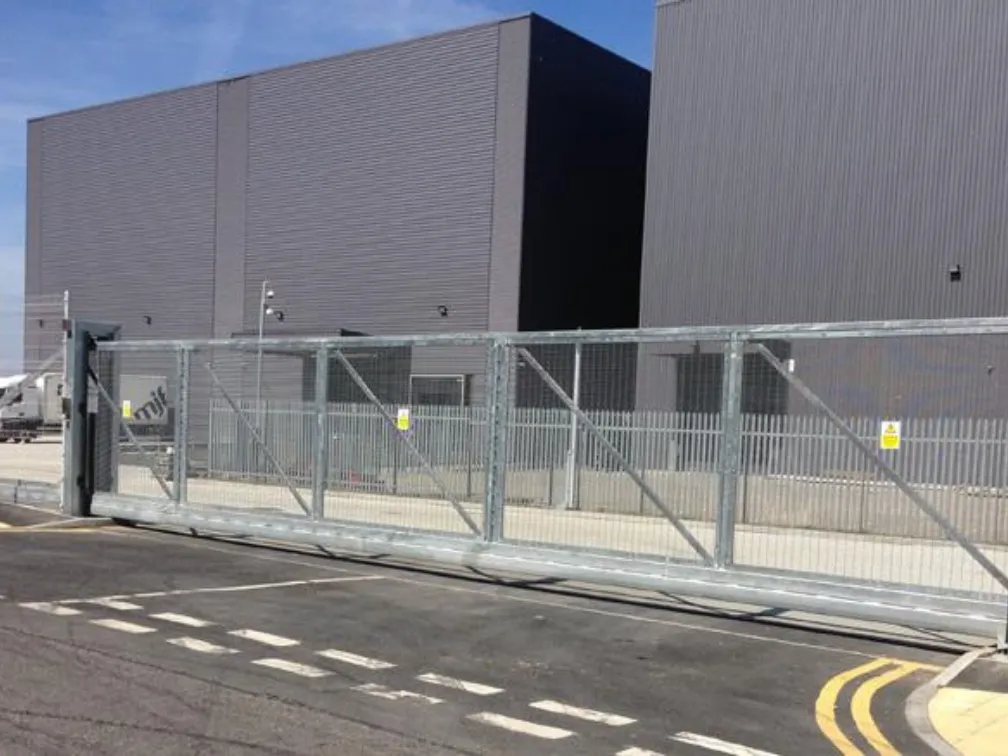

Cantilever Sliding Gate EAG53010

Commercial access control — not crash-rated. This product controls access; inclusion in the HVM range does not make it a crash-rated vehicle barrier.

Request a Quote 877-572-4667

At a glance

Technical specification
Opening	Max 12.0m
Speed	150 to 200mm/sec
Power	240V 16A supply
Finish	Pre-Treatment: Blast Cleaned SA2.5 – Primer: Interpon PZ790 (or equivalent) – Topcoat: Interpon D1036 PPC (or equivalent) to a standard RAL

Key Features

Cantilever Design with heavy duty wheels and high quality bearings
Option of tracked version
Industry proven hydraulic or electromechanical drive system
Low maintenance with minimal moving parts
Smooth and quiet operation
PLC design available with frequency invertor speed control
Smooth and quiet operation
Available with mesh infill or cladding

Design Specification

Technical specification
Opening	Max 12.0m
Speed	150 to 200mm/sec
Power	240V 16A supply
Finish	Pre-Treatment: Blast Cleaned SA2.5 – Primer: Interpon PZ790 (or equivalent) – Topcoat: Interpon D1036 PPC (or equivalent) to a standard RAL
Manual Override	manual opening and lock open in event of power failure
Safety	Conforms to DHF TS013:2021

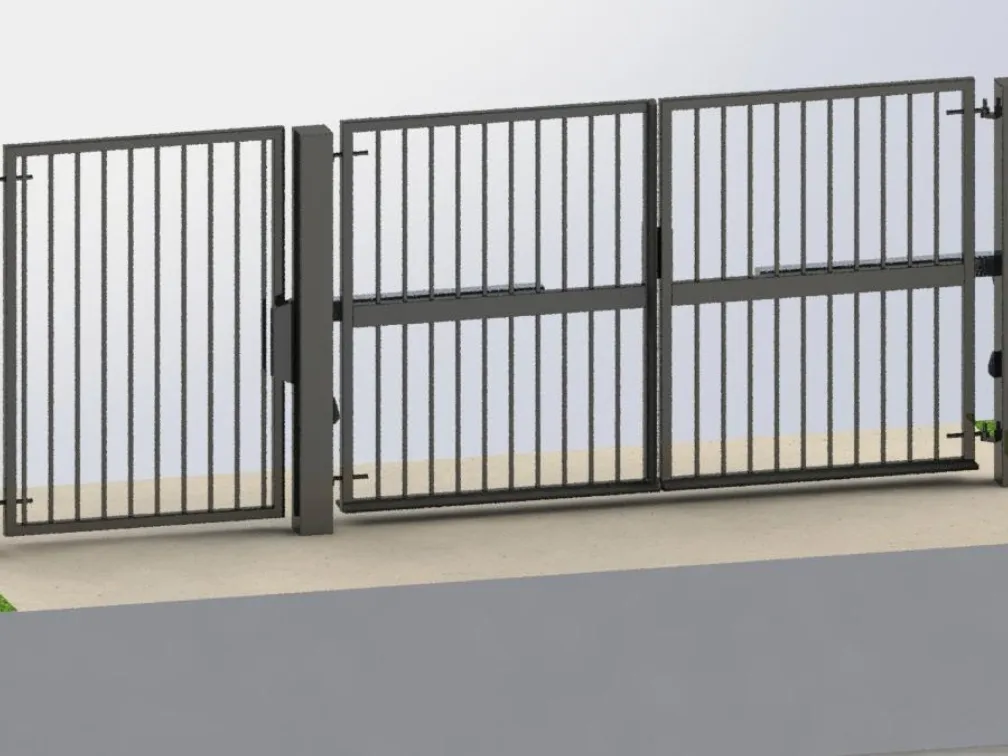

02Swing Gate EAG51010

Key Features

Industry proven hydraulic or electromechanical drive systems
Low maintenance with minimal moving parts
Smooth and quiet operation
PLC design available with frequency invertor speed control
Smooth and quiet operation
Available with mesh infill or cladding

Design Specification

Technical specification
Opening	Max 14m Speed: 25-45 seconds
Available with any mesh infill, or cladding.
Construction	Manufactured from 50mm x 50mm box section with 25mm bars spaced at approx. 100mm intervals
Power	240V 16A supply
Finish	Pre-Treatment: Blast Cleaned SA2.5 – Primer: Interpon PZ790 (or equivalent) – Topcoat: Interpon D1036 PPC (or equivalent) to a standard RAL
Manual Override	manual opening and lock open in event of power failure
Safety	Conforms to DHF TS013:2021

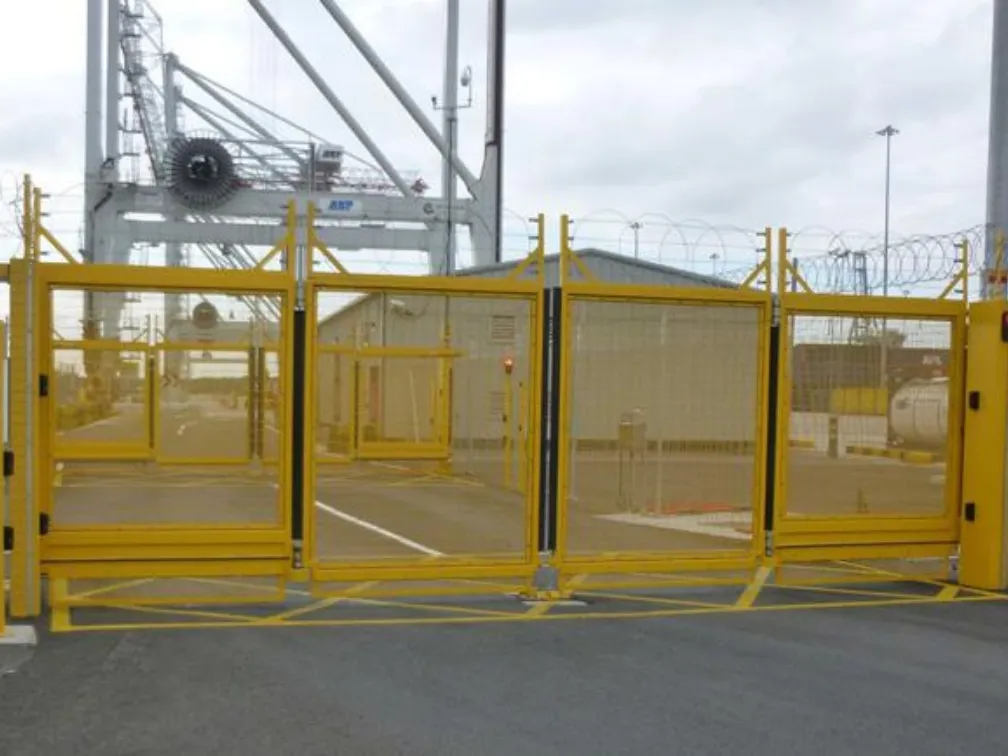

03Bi-Folding Speed Gate EAG50010

Key Features

Trackless design
Heavy duty hydraulic ram with PLC controlled slowdown in both opening and closing movement.
Low maintenance with minimal moving parts
Smooth and quiet operation.
PLC design available with frequency invertor speed control
Very secure with opening and closing in approximately 8-12 seconds

Design Specification

Technical specification
Opening	Max 10.0m
Posts	400mm x 200mm
Infill	25mm x 25mm RHS Nominal at 125mm centres
Hinges	heavy duty with needle roller bearings and thrust bearings
Finish	Pre-Treatment: Blast Cleaned SA2.5 – Primer: Interpon PZ790 (or equivalent) – Topcoat: Interpon D1036 PPC (or equivalent) to a standard RAL
Speed of Operation	approx. 8 seconds
Manual Override	manual opening and lock open in event of power failure
Power Failure	fail secure
Control	Housed in gate posts. No external cabinets
Safety	Conforms to DHF TS013:2021 Power: 240v 16 amp
