RB001-30

PAS68

At a glance

Technical specification
Bollard Spacing	1300mm Centres, 1200mm Spacing Between Tested Cores
Crash Test Rating	(Bsi Pas68:2010) V/7500[n2]/48/90:3.1/0.0
Tested Core Dimensions	100mm W X 200mm L X 850mm H From Ffl
Shroud Measurements	134mm W X 250mm D X 1000mm From Ffl As Standard

01Product Overview

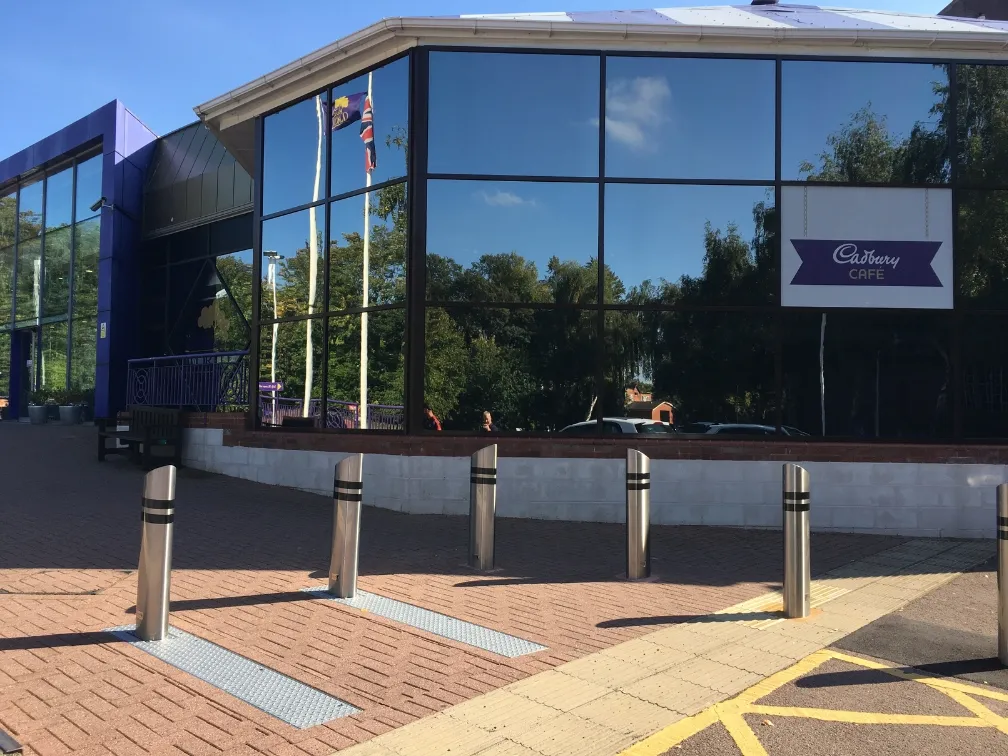

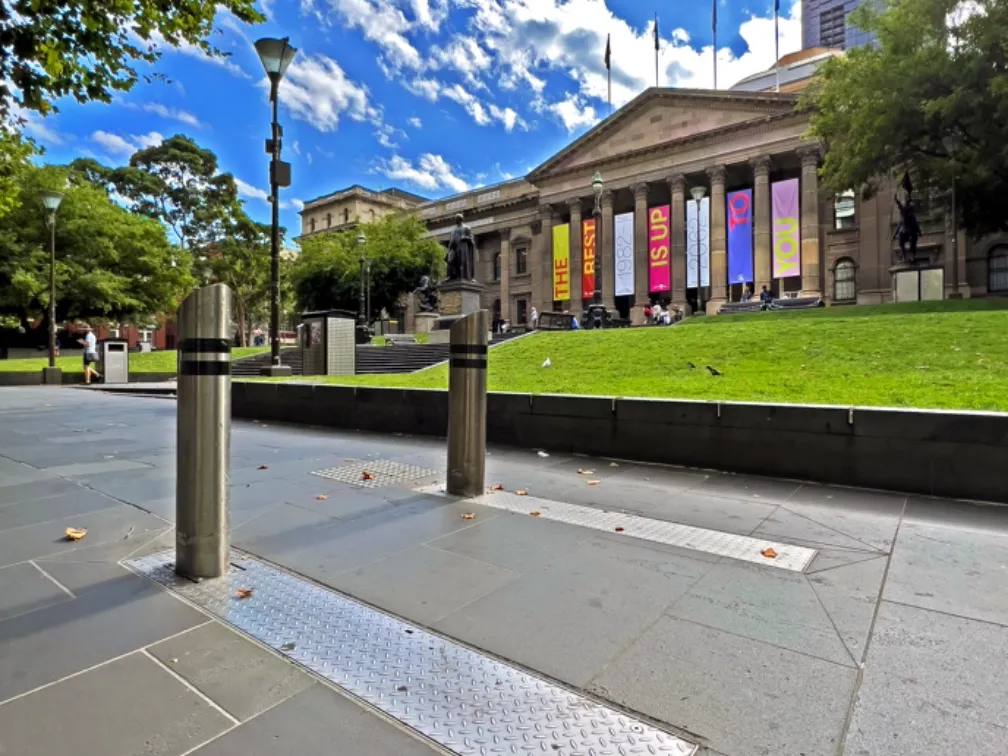

Rb001-30 is one of the shallowest impact tested bollards available on the market today, with a foundation depth of just 450mm, reducing the need to re-divert utilities. This allows for installation at a fraction of the cost of traditional rising bollards.

Unlike traditional rising bollards, Binns rb001-30 utilizes our patented spring steel design, creating a durable, ultra slimline product that is ideal for blending into the public realm.

Rb001-30 is single tested, so does not need to be installed in an array. The system is operated using an 18v cordless drill, meaning there are no mains power connections required, allowing for more cost effective installation and maintenance requirements.

02RB001-30 SPECIFICATION DETAILS

Technical specification
Shroud Measurements	134mm W X 250mm D X 1000mm From Ffl As Standard
Bollard Spacing	1300mm Centres, 1200mm Spacing Between Tested Cores
Drainage Outlets	50mm Diameter
Crash Test Rating	(Bsi Pas68:2010) V/7500[n2]/48/90:3.1/0.0
Tested Core Dimensions	100mm W X 200mm L X 850mm H From Ffl
Minimum Array	One Bollard
Shroud Material	316 Satin Polished Stainless Steel As Standard
Ral Options	Any Standard Ral Colour
Footprint Measurements	1000mm W X 2200mm L X 450mm With 50mm Bedding D
Lid Material	316 Stainless Steel (Bespoke Finishes Available)
Lid Load Test	D400 Highways Specification And To 24 Tonnes
Driving Over Lid Speed	5mph Recommended

03Finishes

Oval 316 stainless steel mitre top shroud with up to 2 hi-vis bands as standard. Alternative finishes available. Please contact your sales representative for more details.
