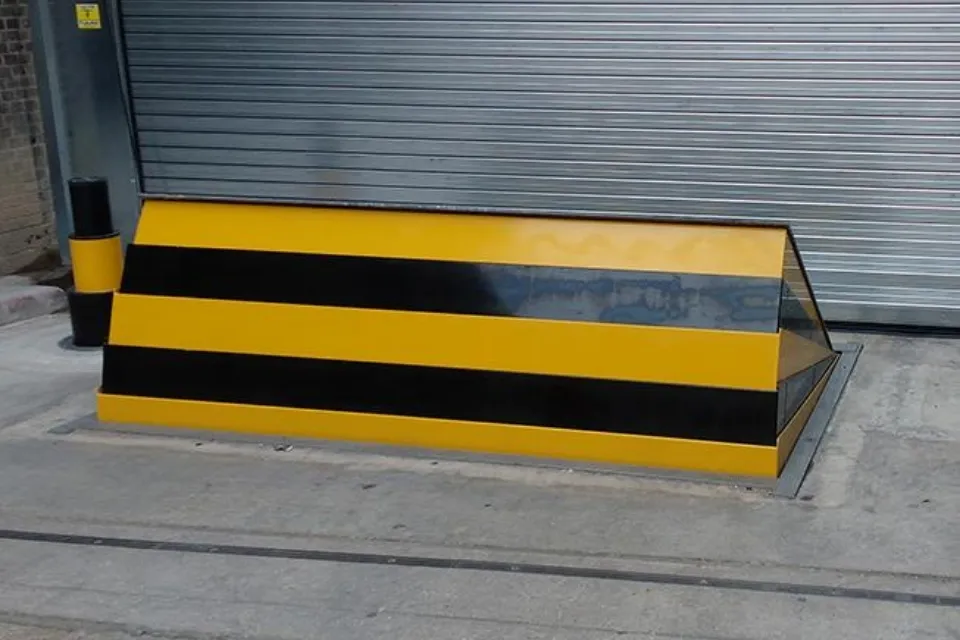

PAS68 & IWA14-1 Road Blockers — product rendering
Hostile Vehicle Mitigation Systems

PAS68 & IWA14-1 Road Blockers

PAS68 & IWA14-1 Shallow and Surface Mount Road Blockers – TITAN EAG05000 Range

  • IWA14-1
  • PAS68
Request a Quote 877-572-4667

At a glance

Technical specification
Tested to IWA14-1 with a 7.2T (N2A) vehicle at 50mph (80kph).
Tested to PAS68 with a 7.5T (N3) vehicle at 50mph (80kph).
Crash Rated to 7.2T (N2A) @50 mph (80kph)
Crash Rated to 7.5T (N3) @50 mph (80kph)

01Titan Shallow Mount Blocker

Technical specification
Tested to IWA14-1 with a 7.2T (N2A) vehicle at 50mph (80kph).

02Titan Surface Mount Blocker

Technical specification
Tested to PAS68 with a 7.5T (N3) vehicle at 50mph (80kph).

03Model: EAG05050

Technical specification
Crash Rated to 7.2T (N2A) @50 mph (80kph)
IWA14-12013 V/7200(N2A)/80/90:0.6

04Model: EAG05050-SM

Technical specification
Crash Rated to 7.5T (N3) @50 mph (80kph)
PAS682010 V/7500(N3)/80/90:7.34/26.4

05Model: EAG05050-SM

Technical specification
Tested at 3m wide
Gaps 10mm max
Manufactured from heavy duty steel sections fully welded
Surface mounting substantially reduces installation time
Designed for axle weights in excess of 12 tonne
2m Foundation 3.0m x 3.2m x 0.47m
3m Foundation 4.0m x 3.2m x 0.47m
Raise speedapprox. 6-8 seconds, 1-2 seconds with optional EFO

Next step

Specify PAS68 & IWA14-1 Road Blockers on your project

Tell us the site, the perimeter length and the rating you need to meet. We'll come back with a specification and a quote.

  • Certified systems supplied across Canada and the USA
  • Installer-friendly details and full technical drawings
  • Support from specification through to handover

Request a quote

PAS68 & IWA14-1 Road Blockers — tell us about your site and we'll respond with a specification.

Prefer to talk? Call 877-572-4667.
