Product range

Anti-Climb Fencing

Anti-climb welded and woven mesh and vertical steel palisade systems, including CANFEN COMBI and DEFENDER, with product-specific LPS 1175 ratings.

  • LPS1175 A1
  • LPS1175 B3
  • LPS1175 C5
Request a Quote 877-572-4667

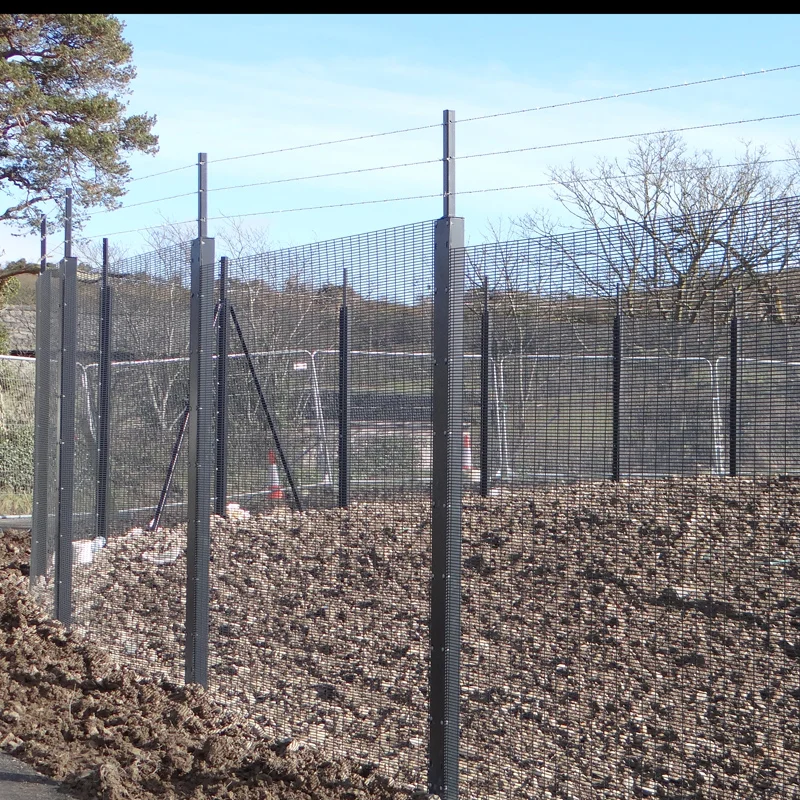

CANFEN high-security mesh fencing with perimeter detection wiring installed at a secure facility in Canada

Anti-Climb Fencing for Industries and Contractors

Binns Canada supplies industry buyers, site owners, specifiers and contractors with anti-climb mesh and vertical steel palisade fencing for public and private sites across Canada and the USA. Drawing on 85+ years of global protective security expertise, our range includes welded and woven mesh, CANFEN COMBI palisade and CANFEN DEFENDER palisade systems. Product-specific LPS 1175 options include A1 (SR1), B3 (SR2) and C5 (SR3). We help project teams select the appropriate system for utilities, transportation, data, energy and municipal sites.

Why industries and contractors choose Binns Canada anti-climb fencing

  • Anti-climb options: Choose tight-aperture welded or woven mesh, or vertical steel palisade systems including CANFEN COMBI and DEFENDER. Select the appropriate product-specific rating for your site.
  • Cut resistance by design: Sigle and twin-wire constructions from 4 mm, 5.5 mm, 6 mm, 8 mm and 10 mm wires resist attack with common tools.
  • Faster installs: Single-panel B3/SR2 systems (UltraGuard) install around 30% quicker than double-skin B3 formats, reducing labour on tight shutdowns.
  • Works on grades: Mesh panels can be stepped; ArmaWeave rakes on site and can be buried 300 mm in soft ground. Vertical steel palisade naturally follows the finished grade and can rake up to 45 degrees, subject to the selected system and site details.
  • Coating built for longevity: Posts, panels, gates and fittings receive a protective zinc layer and electrostatically applied polyester powder coat (as specified on product pages), with enhanced marine coatings available.
  • Add deterrent when required: Compatible with security toppings (razor and non-hostile options) to increase delay and visual deterrence.
  • Canada-wide support: We help project teams match heights, post centres, clamp bars and gate options to drawings and site conditions.

Sam Bradbury is a Director with the Canadian Fence Association and Chairing the Committee for Standards and Best Practices within the CFA.

Our anti-climb fencing range

Below you’ll find the full lineup with the key data owners, specifiers, procurement teams and contractors need for product selection, take-offs and bids.

01: CANFEN 358 A1 (SR1) — welded 358 anti-climb mesh

CANFEN 358 A1 SR1 welded anti-climb mesh fencing with razor wire installed at a secure Canadian site
CertificationLPS 1175 A1 (SR1)
Mesh aperture76.2 × 12.7 mm
Wires1 × 4 mm vertical, 1 × 4 mm horizontal
Standard heights (nominal)2.0 m, 2.4 m, 3.0 m (approx. panel heights 2007, 2438, 2997 mm)
Panel size2518 mm
Post size (2.4 m)80 × 80 mm
Clamp bar80 × 5 mm
Top edgeMinimal projections
Max post centres2440 mm
Notes for installersOverlapping panels with stainless steel through fixings deliver a secure, clean finish. Panels can be stepped ; on steeper grades consider taller panels, part-burying or additional posts as per the site method.

Typical Canadian uses: water treatment perimeters, substations, rail corridors, port facilities and data compounds where a clean look and SR1 performance are required.

CANFEN 868 A1 SR1

CertificationLPS 1175 A1 (SR1)
Mesh aperture50 × 200 mm
Wires1 × 6 mm vertical, 2 × 8 mm horizontal
Standard heights (nominal)2.0 m, 2.4 m, 3.0 m (approx. panel heights 2030, 2430, 3008 mm)
Panel size2510 mm
Post size80 × 80 mm
Clamp bar80 × 5 mm
Top edge22 mm projection (2.0, 2.4 m) , flush (3.0 m)
Post centres2525 mm Why contractors pick it: the heavier twin horizontal wires deliver extra vandal resistance for schools, yards and transit sites without moving up into SR2 costs.

CANFEN ULTRAGUARD B3 SR2

Security levelB3 (SR2)
Mesh aperture76.2 × 12.6 mm
Wires1 × 10 mm vertical, 1 × 4 mm horizontal
Installation speedAt least 30% quicker than comparable double-skin B3 systems.
Heights (nominal)2430–4330 mm
Panel size2520 mm
Post size (2.4 m)80 × 80 mm
Clamp bar80 × 5 mm
Top edgeMinimal projection
Post centres2200 mm

Where it fits: critical assets that demand SR2 performance but need a single-panel solution to keep programs moving—think energy sites and high-risk utilities.

CANFEN ULTRAGUARD SUPER 5

Mesh aperture76.2 × 12.7 mm
Wires5.5 mm vertical and 5.5 mm horizontal (same diameter for extra weld area and panel rigidity)
Minimum delayAt least 3 minutes
Install speed~30% quicker than similar double-skin B3 systems due to the single-panel design
Heights (nominal)2430–5200 mm (listed panel heights include 2705 mm and 3302 mm )
Panel size2518 mm
Post sizeminimum 100 × 50 mm
Clamp bar80 × 5 mm
Top edgeMinimal projections
Post centres2200 mm

Use case: when you need a stiffer panel that resists natural curvature—ideal on long straight runs and exposed sites on the Prairies and Atlantic coasts.

CANFEN ARMAWEAVE fencing

StatusFirst woven fencing system “Approved for UK Government Use.”
Mesh aperture17 × 17 mm
Wires4 mm high-tensile, woven
Heights (nominal)3.0 m, 3.3+, 3.6+, 5.2 m (listed heights: 3000, 3300, 3900, 5200 mm)
Panel size2530 mm
Clamp bar140 × 5 mm
Top edgeMinimal projections
Post centres2330 mm
Ground optionsPanels rake on site to follow contours; bury 300 mm in soft ground or install flush to hard ground.

Why it’s popular: fast on uneven terrain in places like Northern Ontario or coastal B.C., where stepped panels slow the crew. The tight 17 mm weave delivers outstanding anti-climb and anti-cut performance.

CANFEN COMBI A1 SR1

CertificationLPS 1175 A1 (SR1); Secured by Design; conforms to BS 1722 Part 12:2016
DesignPatented Combi™ vee slot secures the pale through the rail with a countersunk bolt on the front face.
Design life25–40 years
Install benefitsNo specialist tools; installs on sloping, uneven ground
Heights1.8–3.0 m
SupplyKit form for transport, storage and installation
GatesRange of security-rated pedestrian and vehicle gates

Where it lands: industrial and municipal sites that want the deterrence of palisade with SR1 certification and quick installation.

CANFEN COMBI B3 SR2

CertificationLPS 1175 B3 (SR2); Secured by Design; conforms to BS 1722 Part 12:2016
Design life25–40 years
Install speedOne of the quickest fences to install at B3 (SR2)
ToolsNo specialist tooling required
GroundHandles sloping, uneven ground
Heights2.4–3.0 m
SupplyKit form; gates available

Contractor fit: when drawings call for SR2 and a palisade aesthetic —common on utilities, logistics hubs and MOD-style compounds.

CANFEN DEFENDER SR3

CertificationLPS 1175 C5 (SR3)
Tested delayMinimum 5 minutes; independently tested against hand and power tools
Design life25–40 years
FittingsOnly 10 security fittings per panel
InstallNo specialist tooling; works on sloping, uneven ground
GatesRange of security-rated pedestrian and vehicle gates
SupplyKit form for easier logistics

Where it’s used: high-value assets and critical national infrastructure including water utility sites, oil and gas compounds, data centres and similar high-risk perimeters.

Coatings, finish and service life

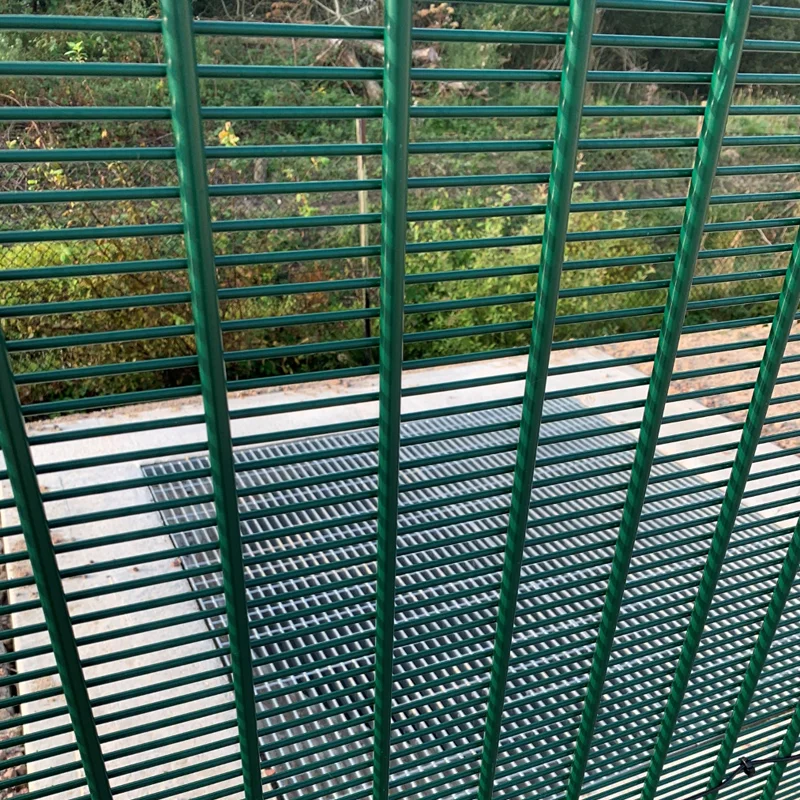

Close-up detail of CANFEN welded security mesh fencing used for anti-climb perimeter protection in Canada

Across the range, Binns Canada posts, panels, gates and painted auxiliary components (clamp bars, slide bolts and more) include a protective zinc layer with electrostatically applied polyester powder coating in line with the specifications shown on each page. Product literature notes coating practice aligned to BS 1722-16 and describes a long service life with routine maintenance, with enhanced marine coatings available for harsher C-zones. Ask our team for the right finish package for Atlantic, Prairie, Northern or coastal projects. Our mesh panel systems are warrantied for up to 25 years, depending on location.

Built for Canadian jobsites

Fence builders work in all conditions—winter frost in Winnipeg, spring thaw in Ottawa, salt air in Halifax and steep embankments around Vancouver. This range supports those realities:

  • Stepped panels and raking options keep your line true on grades and ridgelines.
  • Post centres listed (e.g., 2200–2536 mm ) speed up setting out.
  • Clamp bars ( 40 × 5 mm , 80 × 5 mm and 140 × 5 mm ) and minimal-projection top edges deliver a clean finish that discourages scaling.
  • Listed heights from 1.8 m to 5.2 m cover a range of site requirements; higher configurations are available on request. Confirm the selected system, design and applicable tested rating with our team.
  • Kit-form supply and stainless through-fixings (per product) keep install sequences simple for crews working on railway possessions, night shifts and live industrial facilities.

Certifications and industry involvement

Binns Canada participates in industry associations and supports product-specific security standards:

  • Cyber Essentials
  • Active memberships: Fence Workers Association (FWA), Canadian Fence Association (CFA/CFA), Association of Fencing Industries (AFI) and American Fence Association (AFA)

These programs underpin product consistency, safe delivery and responsible environmental practice on the projects you build.

Typical applications we support

  • Water & wastewater treatment works and reservoirs
  • Electrical utilities and substations
  • Transit and rail corridors and stations
  • Data centres and telecom facilities
  • Oil, gas and petrochemical compounds
  • Ports, airports and logistics perimeters
  • Correctional centres and prisons; public sector and municipal sites

We supply compatible hostile and non-hostile security toppings for mesh and vertical steel palisade fencing. Confirm the suitable topping with us for the selected system.

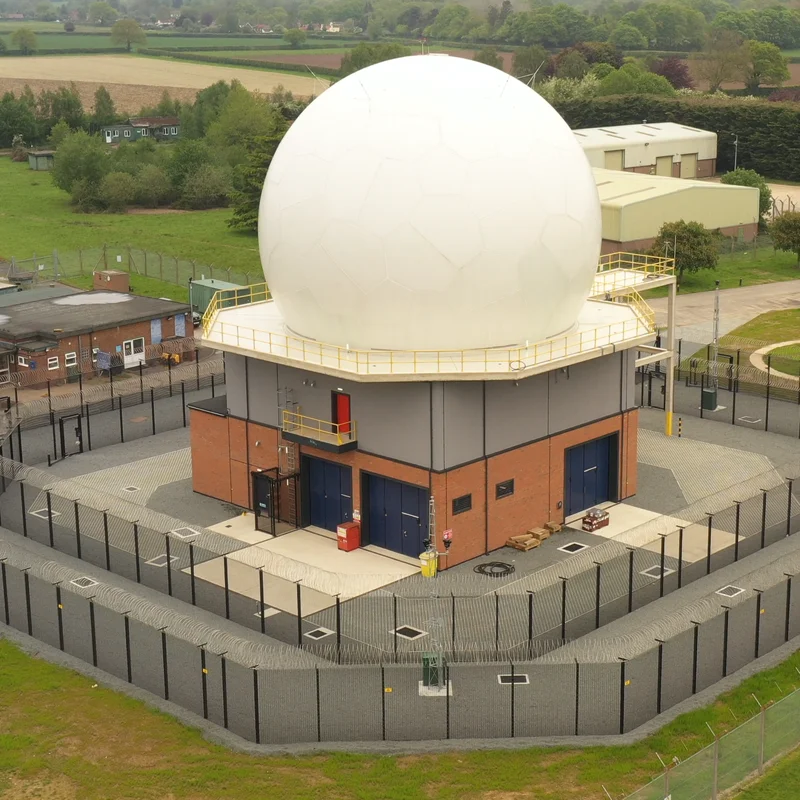

High-security perimeter fencing installed around a radar and critical infrastructure facility in Canada

How we support your perimeter project

  • Specification help: Share drawings and risk level; we’ll recommend the most efficient SR1, SR2 or SR3 option with the right height, post centres and clamp bars.
  • Quotes that match reality: We align bills of materials to terrain notes ( stepping, burying or extra posts ) so you don’t get caught on site.
  • Delivery to schedule: We coordinate supply to suit shutdowns and staged installs.
  • After-sales support: Need guidance on coatings for a marine job or advice on toppings? Call our team—no generic ticket system, just engineers who know the products. We offer full technical back-up and installation training.

Get a fast quote for anti-climb fencing

Whether you’re pricing a substation in Alberta , a treatment plant in Quebec , or a data facility in the GTA , our team will help you pick the right system and turn around a competitive package.

Binns Canada—your nationwide partner for anti-climb fencing with proven performance, installer-friendly details and the backing of 85+ years of global protective security experience.

FAQs

What’s the difference between 358 mesh and 868 mesh?

358 is a tight welded mesh with 76.2 × 12.7 mm apertures and 4 mm wires (vertical and horizontal). It’s designed to stop toe-holds and is certified to LPS 1175 A1 (SR1). 868 is a heavier twin-wire system with 50 × 200 mm apertures, 1 × 6 mm vertical and 2 × 8 mm horizontal wires—also rated A1 (SR1) . Think of 358 for maximum anti-climb visibility and 868 when you want extra rigidity and vandal resistance.

Which systems hit SR2 and SR3 security levels?

For SR2 (B3) you’ve got two choices: CANFEN UltraGuard B3 (SR2) , a single-skin mesh that installs about 30% faster than double-skin B3 systems, and CANFEN Combi B3 (SR2) , a hybrid palisade that’s one of the quickest SR2 fences to install.

For SR3, choose CANFEN Defender SR3 —a maximum-security palisade tested to LPS 1175 C5 (SR3) with a minimum 5-minute delay against hand and power tools.

Do these fences work on grades and uneven ground?

Yes. Mesh panels can be stepped to suit the terrain. ArmaWeave rakes on site to follow contours and can be buried 300 mm in soft ground or installed flush to hard ground. Vertical steel palisade is our most forgiving system for uneven ground: it naturally follows the finished grade and can rake up to 45 degrees. Confirm the selected system and site details with our team.

What heights and post centres can I plan around?

Across the range, listed heights run from 1.8 m to 5.2 m depending on the system, and higher bespoke configurations can be discussed with our team. For mesh fencing 2.4 m high or above, panels are shortened to 2300 mm wide, generally giving 2200 mm post spacing for efficient shipping; use the system-specific dimensions below, including ArmaWeave’s stated exception. CANFEN COMBI A1 (SR1) vertical steel palisade is available in listed heights from 1.8 m to 3.0 m. Mesh examples from the specs:

  • 358 A1 (SR1): nominal 2.0, 2.4, 3.0 m (panel heights about 2007, 2438, 2997 mm ) with 2200–2440 mm post centres.
  • 868 A1 (SR1): nominal 2.0, 2.4, 3.0 m (panel heights 2030, 2430, 3008 mm ) with 2200–2525 mm post centres.
  • UltraGuard B3 (SR2): 2430–4330 mm nominal; 2200 mm post centres.
  • UltraGuard Super 5: heights listed include 2430–5200 mm with 2200 mm post centres.
  • ArmaWeave: nominal 3.0, 3.3+, 3.6+, 5.2 m with 2330 mm post centres. Clamp bars are 40 × 5 mm, 80 × 5 mm or 140 × 5 mm , depending on the system.
What coating system do you supply for Canadian conditions?

Posts, panels, gates and painted components receive a protective zinc layer followed by an electrostatically applied polyester powder coat as shown on each product page (with references to BS 1722-16 ). We also specify enhanced marine coatings for harsher C-zones—ideal for coastal jobs from Halifax to Prince Rupert .

Can I add security toppings to these fences?

Yes. Compatible hostile and non-hostile security toppings are available for mesh and vertical steel palisade fencing. Toppings can add visual deterrence and extra delay. Confirm the appropriate topping for the selected fence system with Binns Canada.

What’s special about UltraGuard Super 5?

UltraGuard Super 5 uses 5.5 mm vertical and horizontal wires —same diameter both ways—which increases weld area and overall rigidity. It delivers a guaranteed minimum delay of at least 3 minutes , resists natural panel curvature and installs about 30% faster than similar double-skin B3 systems. Heights run up to ~5.2 m .

Is the woven ArmaWeave acceptable on government-sensitive sites?

Yes. CANFEN ArmaWeave is noted as the first woven fencing system “ Approved for UK Government Use .” The 17 × 17 mm high-tensile weave offers tight anti-climb performance, rakes on site and can be 300 mm buried in soft ground—great for security-critical sites with changing levels.

Do the hybrid palisade systems include gates?

They do. Combi A1 (SR1), Combi B3 (SR2) and Defender SR3 all list a range of security-rated pedestrian and vehicle gates . Hybrids use the patented Combi™ vee-slot rail connection with a countersunk bolt through the front face—quick to install and engineered for long design life ( 25–40 years listed).

How do I choose between SR1, SR2 and SR3 for a project in Canada?

Use the risk profile and the client’s standard as your guide:

  • SR1 (A1) —general high-security perimeters for utilities, transit and municipal sites (e.g., CANFEN 358 or 868 ).
  • SR2 (B3) —higher-risk compounds, data or energy sites demanding more delay with efficient installs ( UltraGuard B3 or Combi B3 ).
  • SR3 (C5) —critical national infrastructure and high-value assets ( Defender SR3 ). Send your drawing and terrain notes and we’ll match height, post centres, clamp bars and coating to your spec so your take-off is install-ready.
